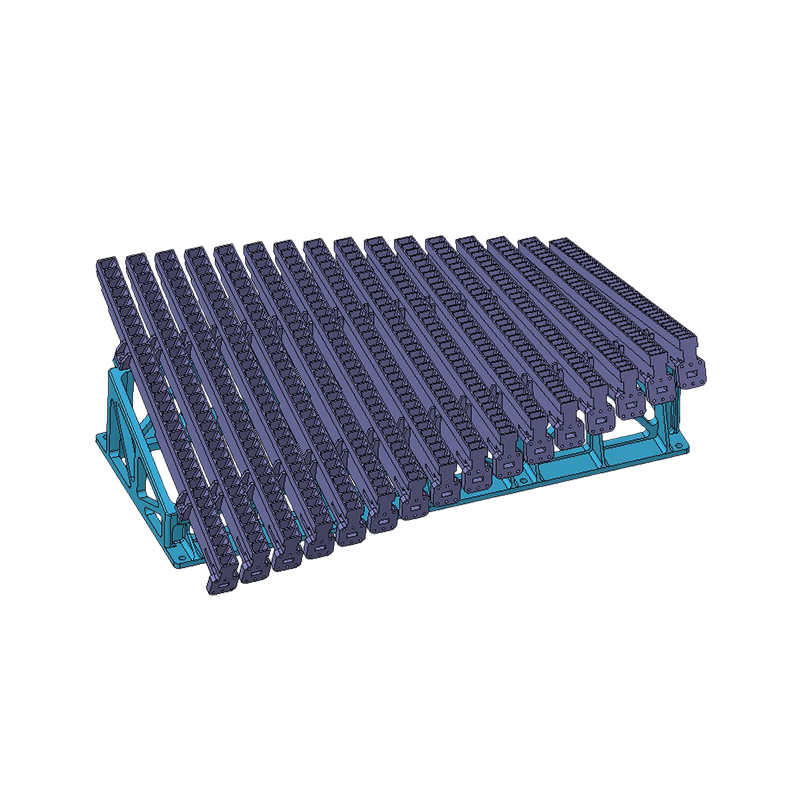

16-beam waveguide array structure antennaUses waveguide slot array feeding to avoid complex feeding networkBoth transmission and reception use 16×24 arrayWeight: <1.66kg/pair (receive), <3.66kg/pair (transmit)

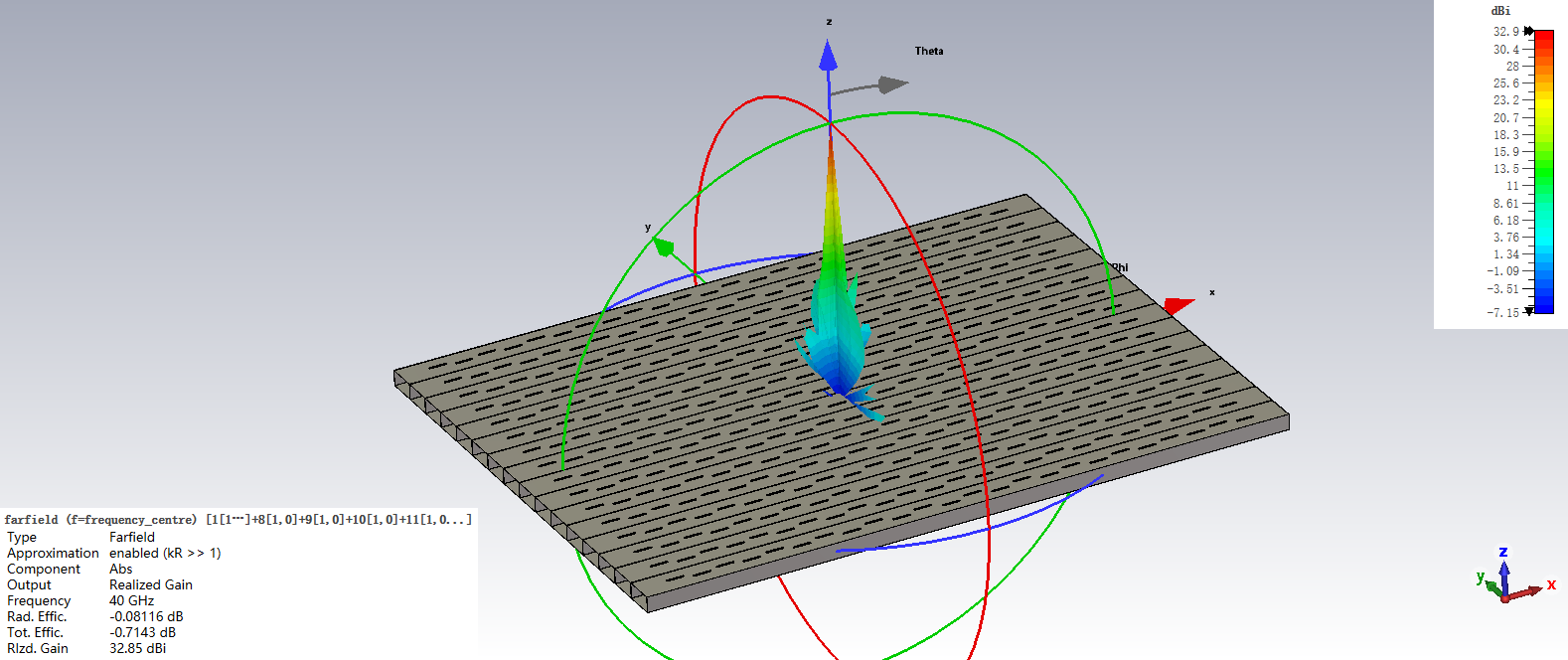

3D-40G 16-element antenna (number of slots per element: 24)

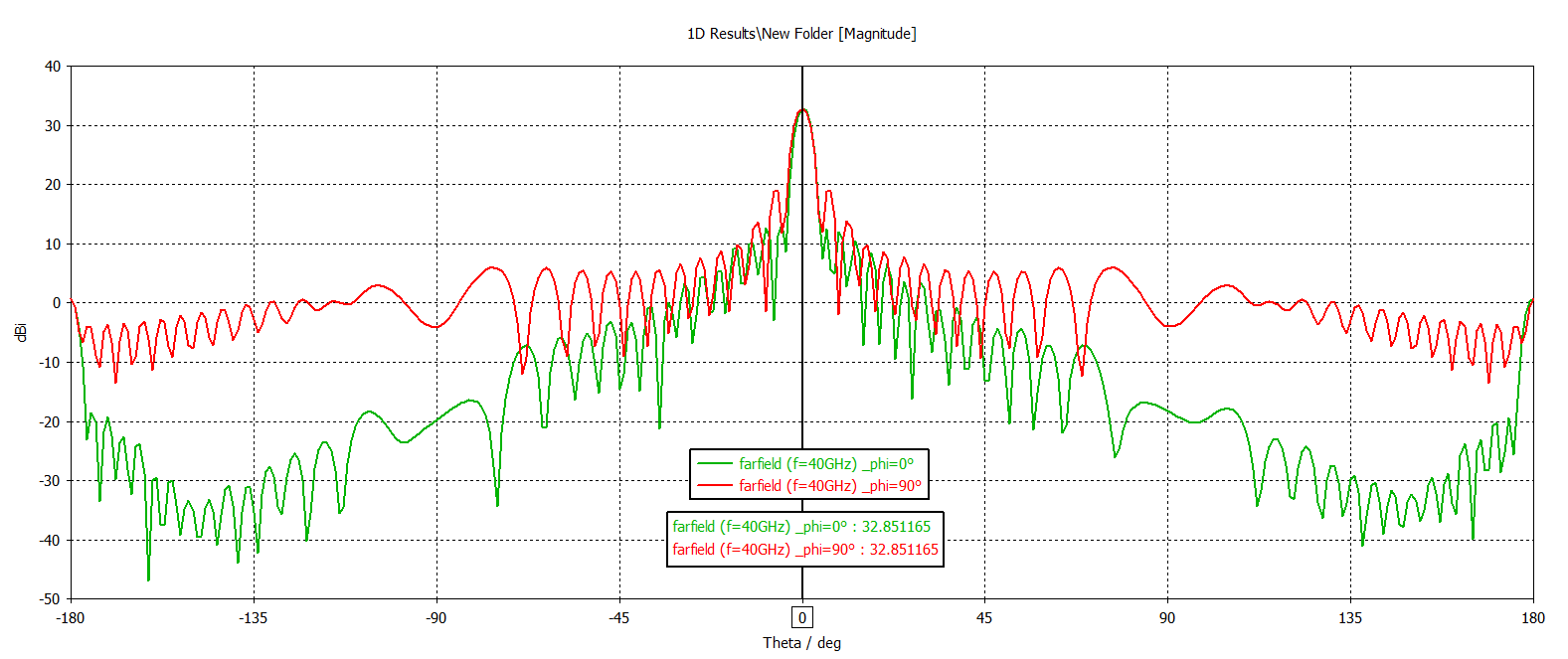

1D-40G 2D directional diagram (phi=0°, phi=90° two vertical sections)

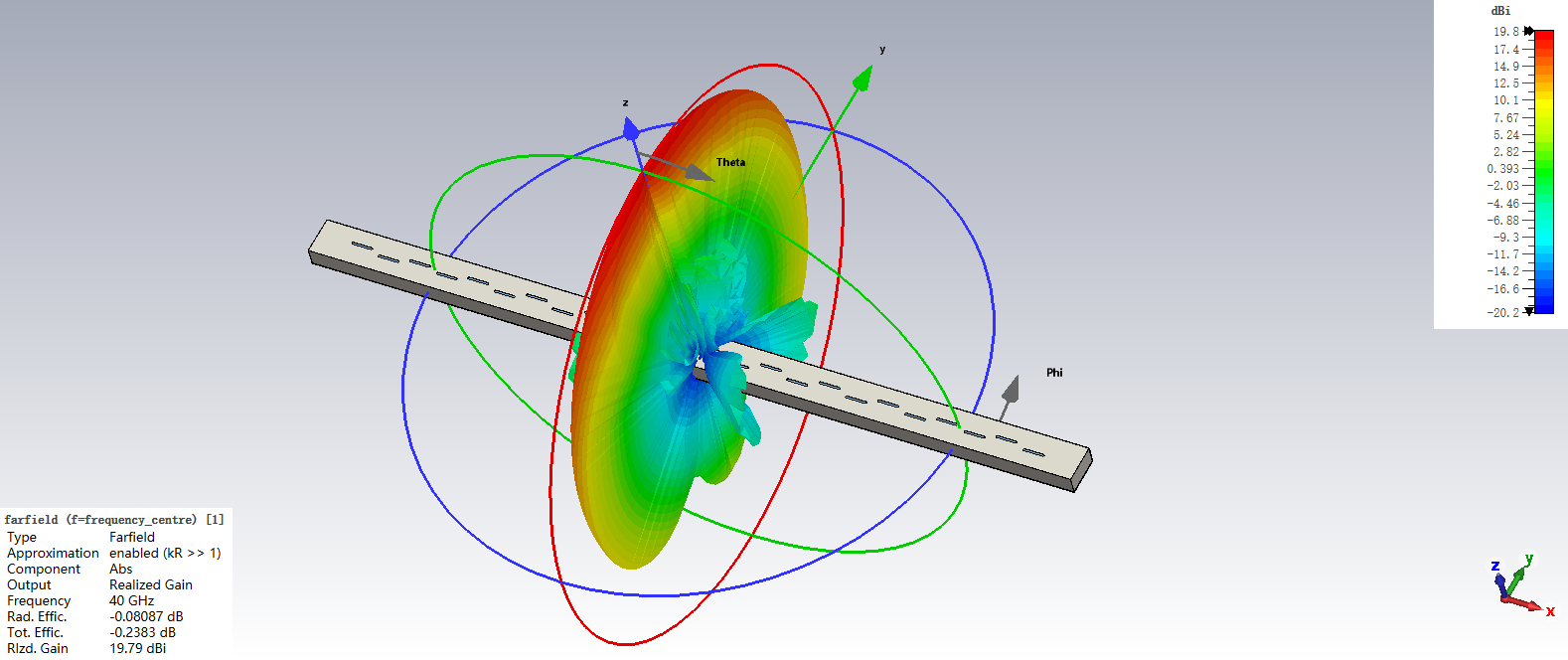

3D-40G single-element antenna (number of slots: 24)

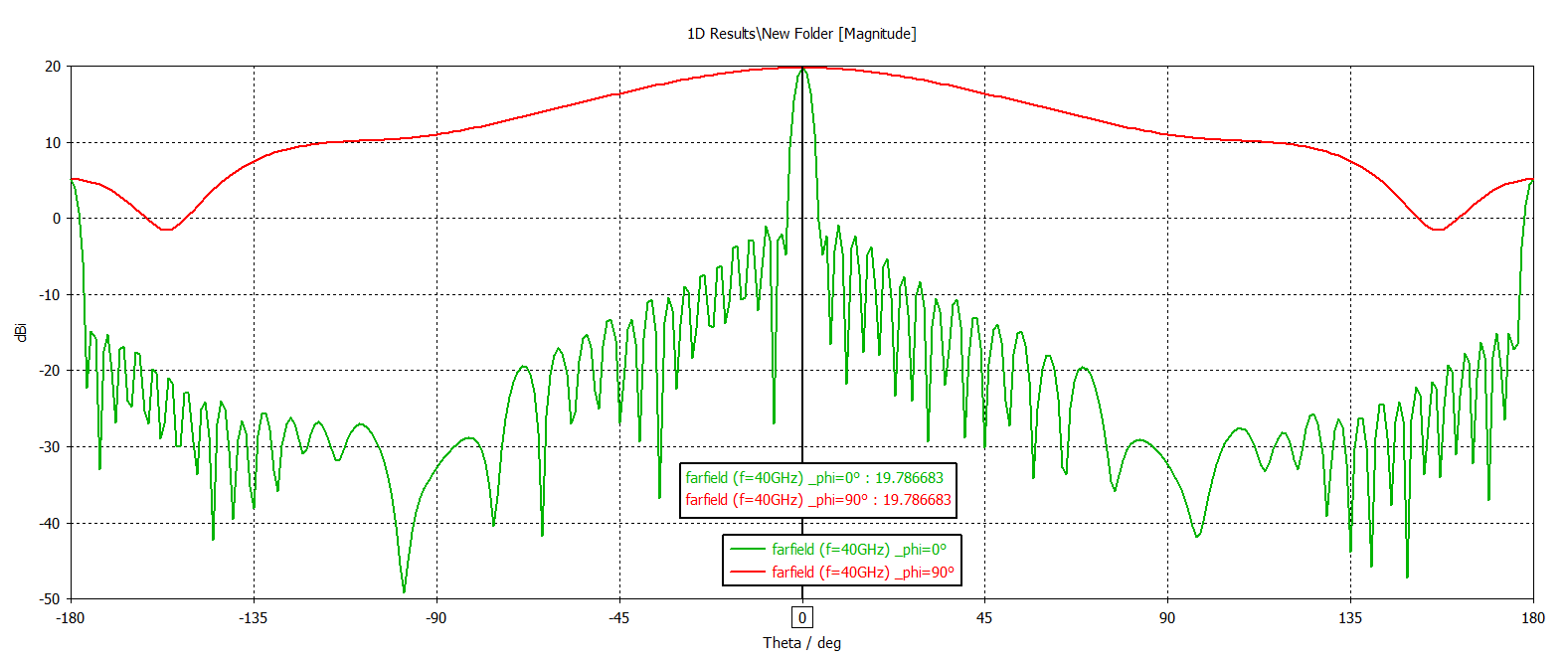

1D-two-dimensional directional diagram (phi=0°, phi=90° two perpendicular sections)
