Ka band 35GHz±500MHz
Polarization: horizontal polarization, vertical polarization
Antenna gain (horizontal/vertical): ≥54dBi
First sidelobe level: ≤-28.5dBi

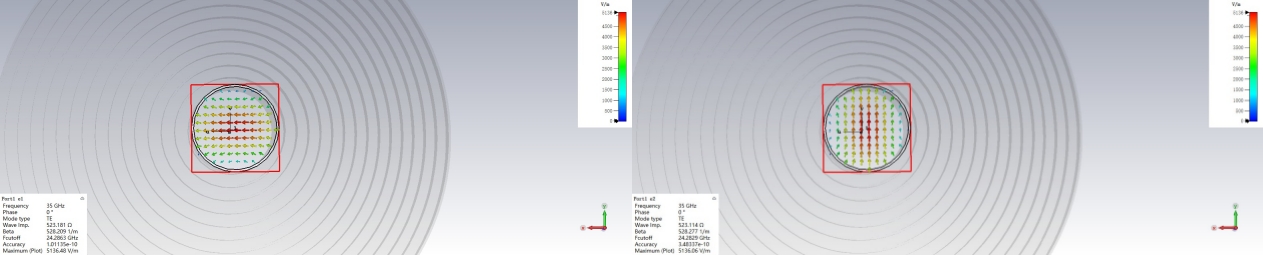

Corrugated horn TE10, TE01 mode realizes horizontal polarization and vertical polarization

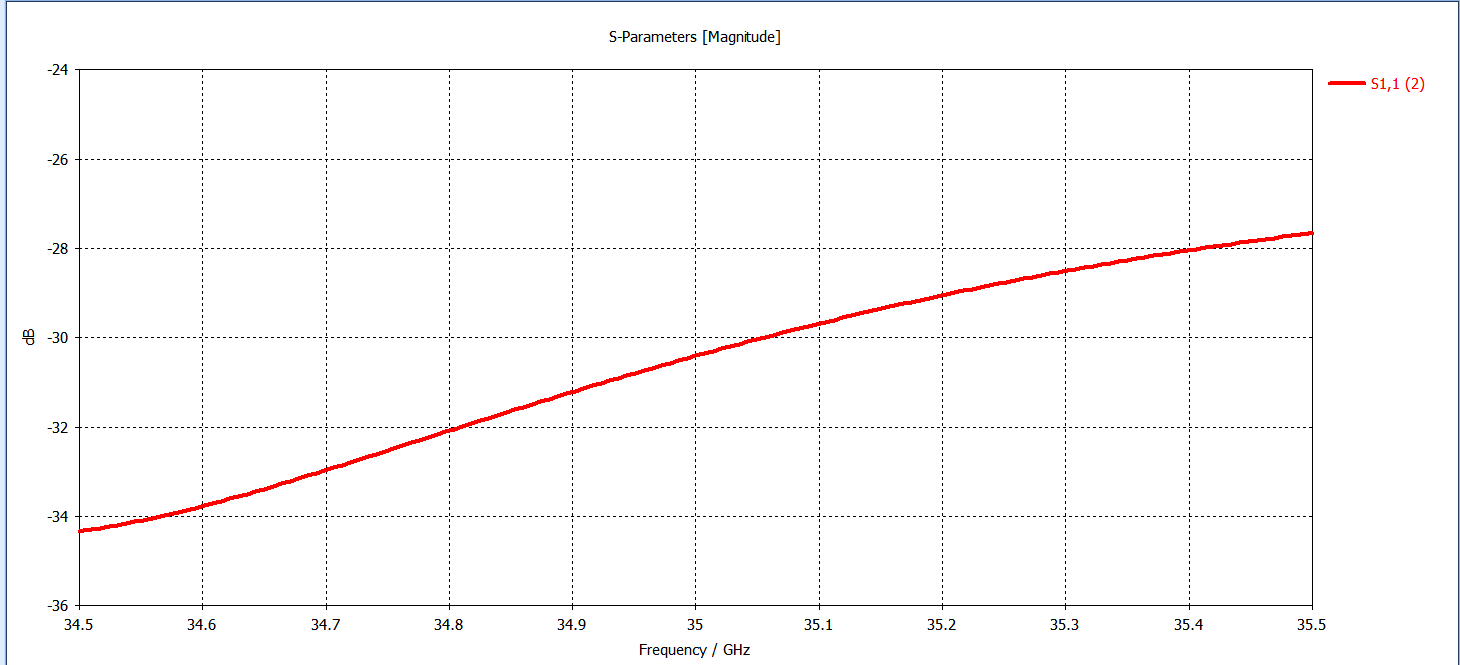

S11 34.5G-35.5G-S11

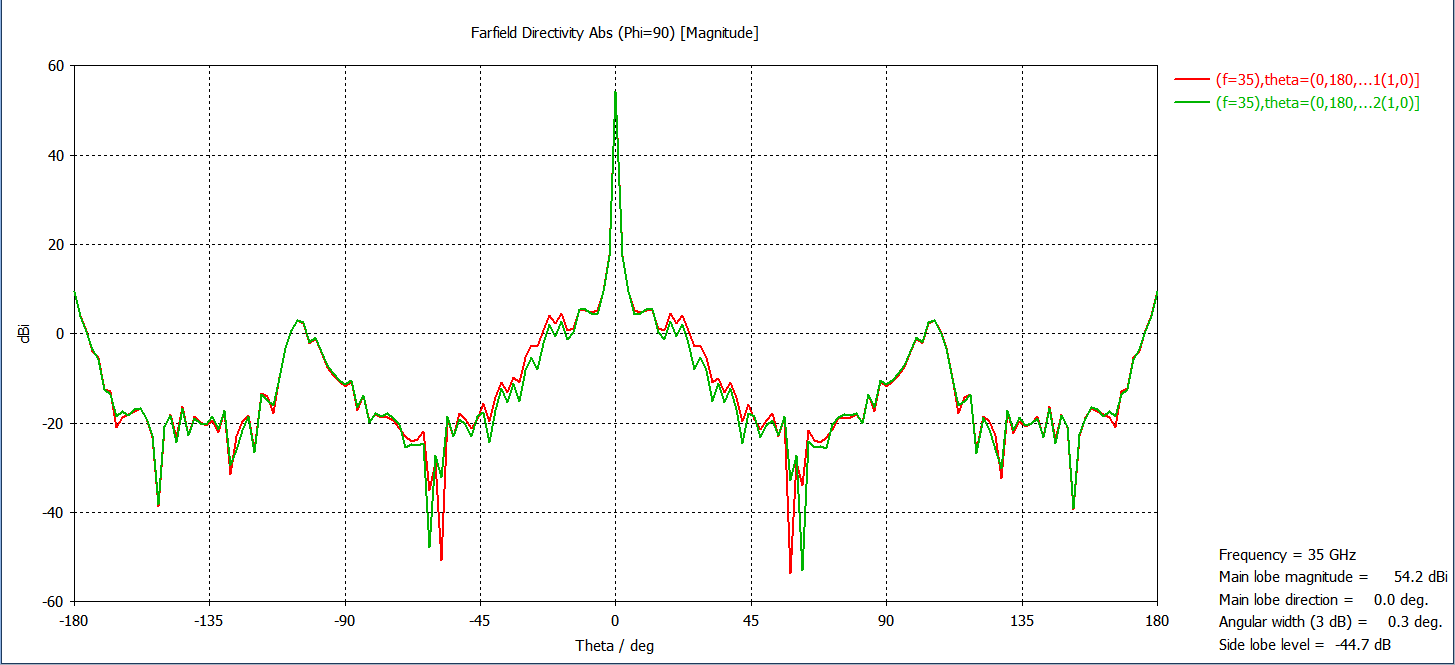

1D-35G Antenna gain (horizontal/vertical) 54.2dBi

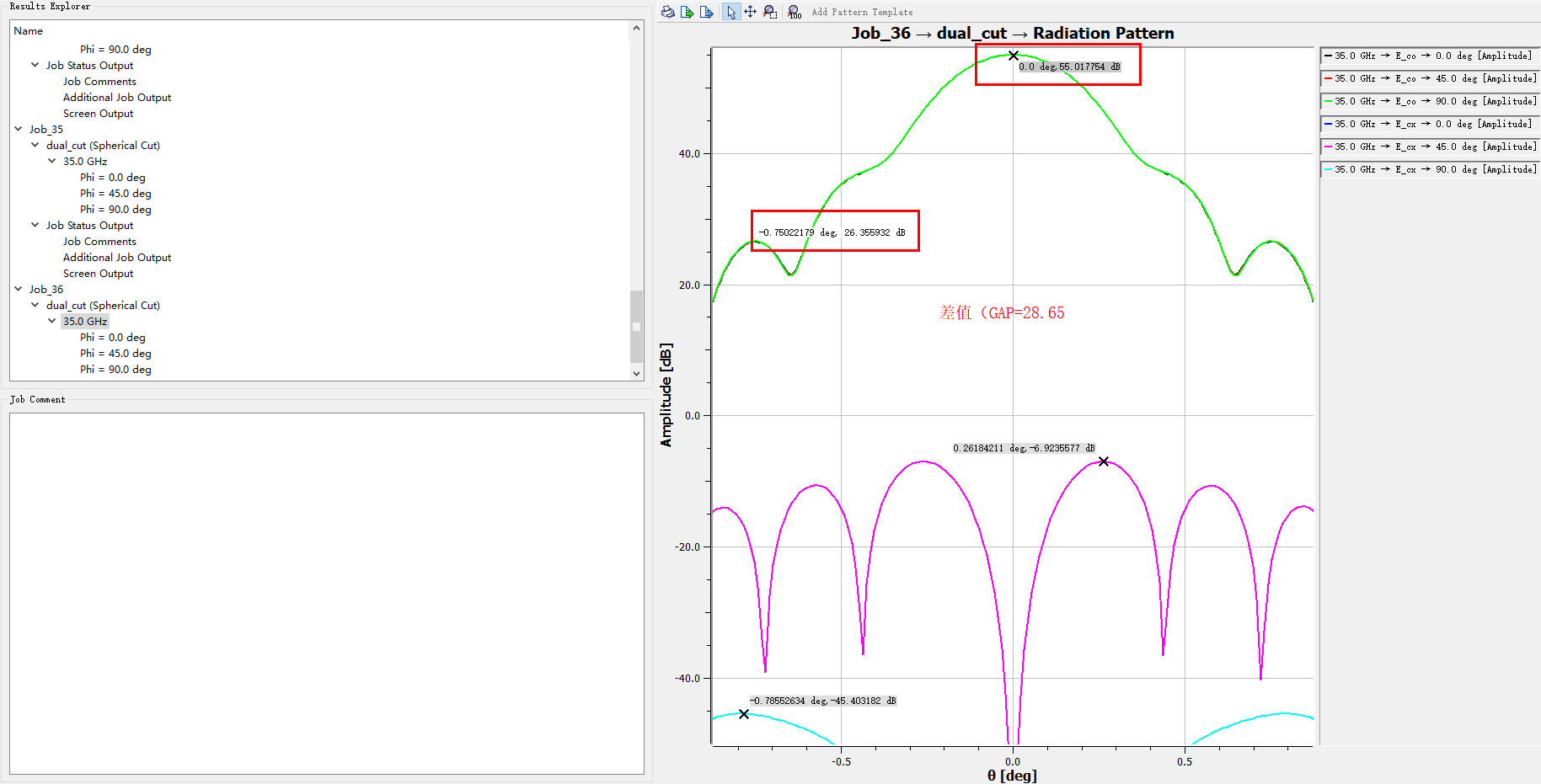

1D-first sidelobe level -28.65dB
