Cabinet (RX Series U-Shaped Profile)

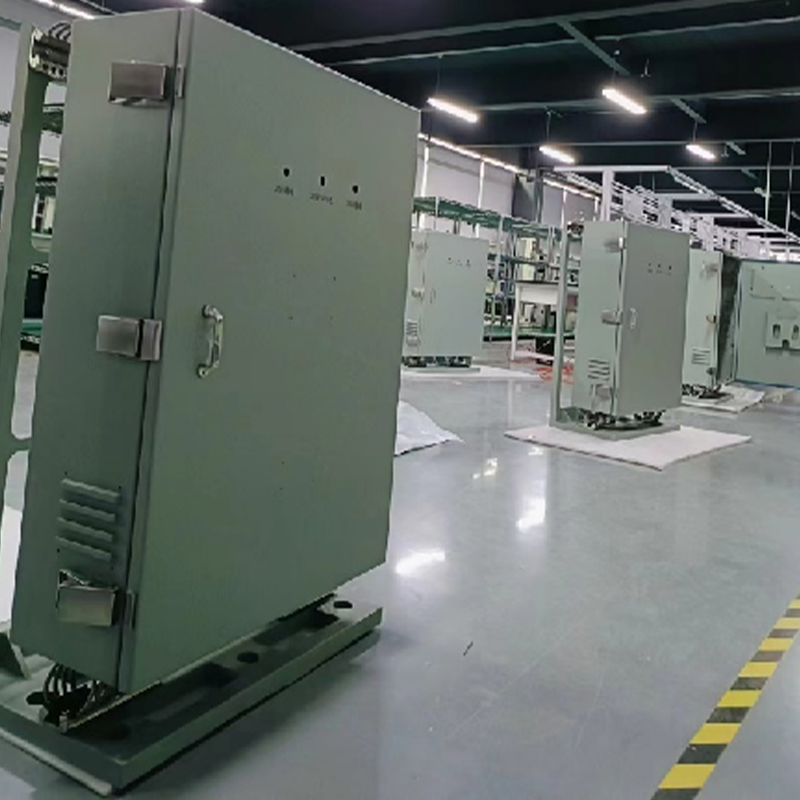

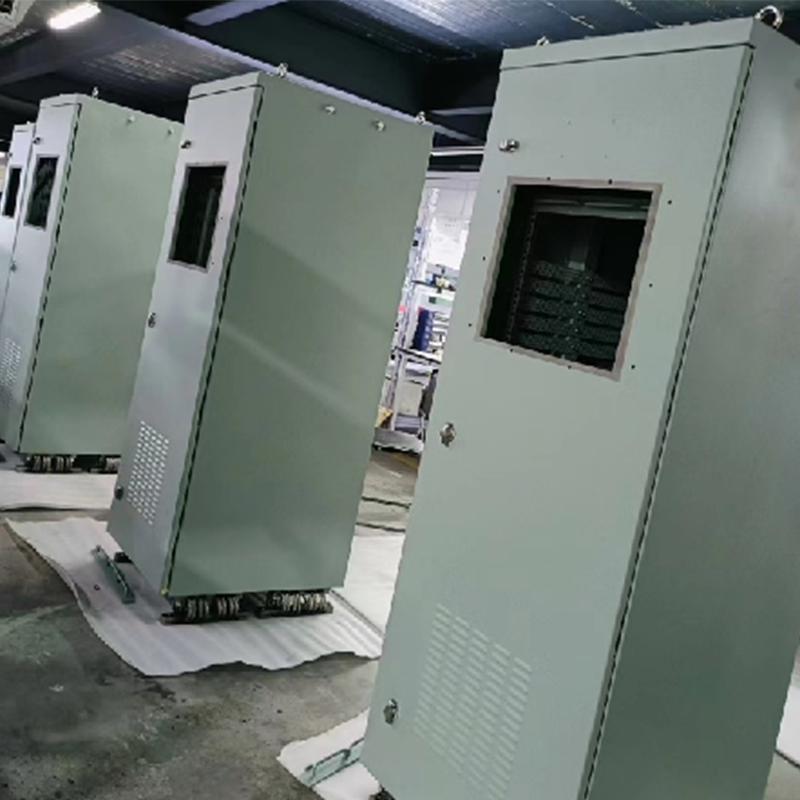

The cabinet is a combination of aluminum alloy profiles and sheet metal, and can be used in ground stations, vehicle-mounted, airborne and other electronic equipment. A is the width of the cabinet, B is the effective height of the cabinet, C is the total height of the cabinet, and D is the shock-absorbing mounting hole of the cabinet. The above picture shows a conventional 19-inch model, which is compatible with various types of standard 19-inch U-type chassis, and other models can be customized.

Consult

Features Technical Indicators Overall Dimension

RX289 series 19-inch U-type cabinet general model parameter table
model	A	B	C	D
JG19-C6012-1	600	537	632	400
JG19-C6014-1	600	581	676	400
JG19-C6022-1	600	981	1076	400
JG19-C6025-1	600	1114	1209	400
JG19-C6028-1	600	1247	1342	400
JG19-C6030-1	600	1336	1431	400
JG19-C6033-1	600	1470	1565	400
JG19-C6035-1	600	1559	1654	400
JG19-C6038-1	600	1692	1787	400
JG19-C7513-1	750	582	477	550
JG19-C7515-1	750	626	721	550
JG19-C7518-1	750	803	898	550
JG19-C7522-1	750	981	1076	550
JG19-C7525-1	750	1114	1209	550
JG19-C7528-1	750	1247	1342	550
JG19-C7529-1	750	1292	1387	550
JG19-C7530-1	750	1337	1432	550
JG19-C7532-1	750	1426	1521	550
JG19-C7533-1	750	1471	1566	550
JG19-C7534-1	750	1516	1611	550
JG19-C7535-1	750	1561	1656	550
JG19-C7536-1	750	1606	1701	550
JG19-C7538-1	750	1692	1787	550
JG19-C7539-1	750	1692	1787	550
JG19-C7540-1	750	1782	1877	550
