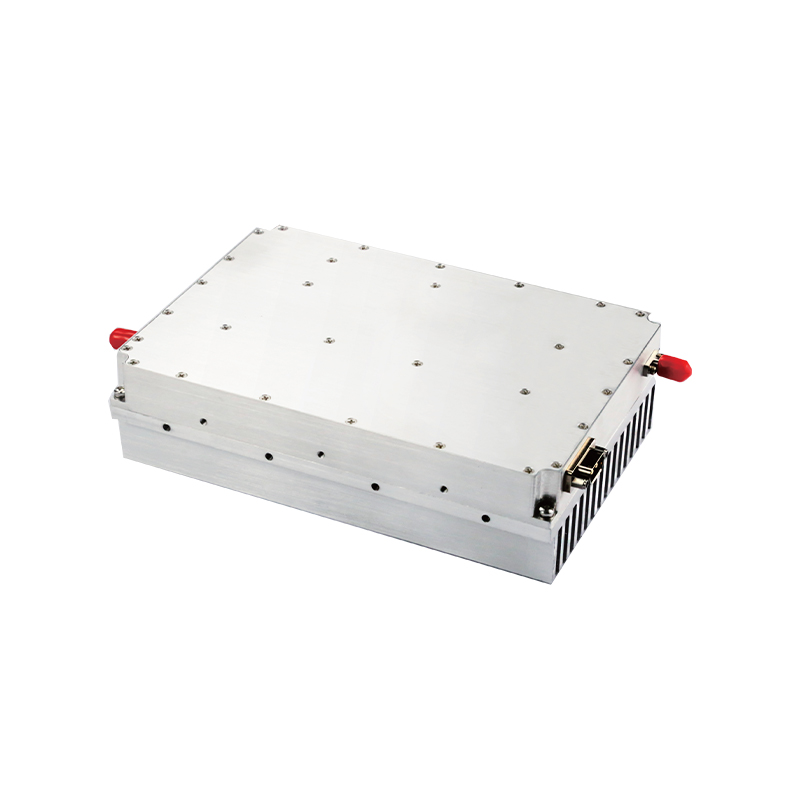

Power Amplifier Equipment

The company has launched products such as continuous wave power amplifiers, pulse power amplifiers and linear power amplifiers in module and complete machine forms, covering frequencies from 10KHz to 50GHz, with a power of up to 500W in some frequency bands. They can meet the needs of generating high-power microwave signals in various application scenarios such as satellite communications, electronic countermeasures, radar systems and EMC testing.

Consult

Features Technical Indicators Overall Dimension

With ALC gain control function

With working voltage, current detection, output signal detection function

With overheating and overload protection function

With serial communication and Ethernet communication function

Adopts balanced amplification synthesis technology, with high reliability

Reserved cold standby expansion interface

Serial number	Performance parameters	Minimum	Typical Value	Maximum	Unit
1	Frequency	1-6			GHz
2	Channel Gain	45	45		dB
3	Gain Flatness		±4	±5	dB
4	Input VSWR		1.5	2.0	:1
5	1dB Compression Point	44.5	45.5		dBm
6	Output saturation power		47		dBm
7	Non-harmonic spurious	13	15		dB
8	Spurious suppression	60			dBc
9	Maximum output power			8	dBm
10	DC current (28V@50W)		6	7	A
11	Input/Output Connectors	SMA-Female/SMA-Female
