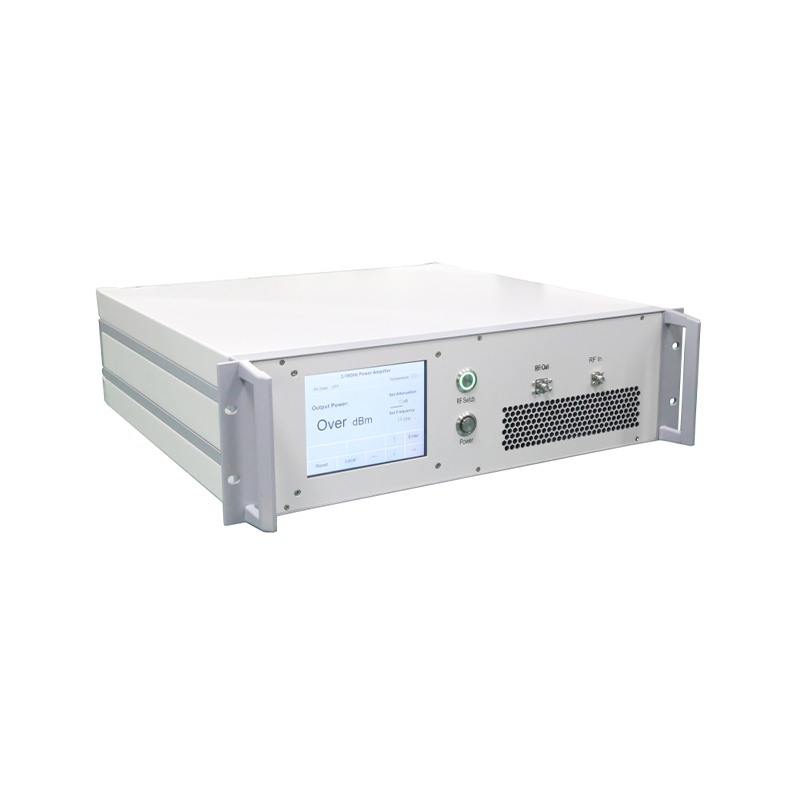

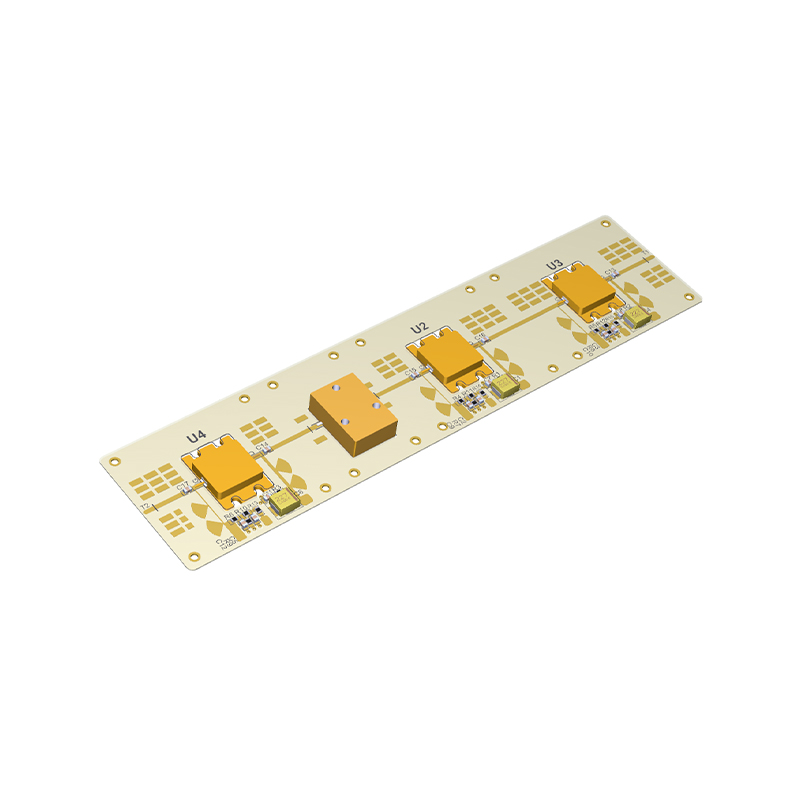

X-band Power Amplifier Equipment
X-band Power Amplifier Equipment
1. RF input/output frequency range: 2025MHz~2120MHz, frequency step 1kHz.
2. IF output/input and output frequency range: 70MHz±11MHz.
3. Small signal gain: 65dB (customizable).
4. Second harmonic suppression: better than 50dBc.
5. Third-order intermodulation (IM3): ≤-30dBc (backoff 6.5dB).
6. Clutter suppression: better than 65dBc.
7. Gain control range: 30dB, step 0.5dB.
8. Group delay in any instantaneous band (±11MHz): ≤±0.5ns, 24h absolute delay change ≤5ns.
9. Flatness in any instantaneous band (±11MHz): ≤±0.25dB.
10. Gain stability: ±0.3dB/24h.
11. Phase noise: deterioration is no more than 1dB.
12. AM/PM Conversion coefficient: ≤2/dB (at P-1).
13. Input/output interface: N/BJ84 (WR112).
14. Input/output standing wave: ≤1.5.
15. Operating temperature: -40℃~+60℃.
16. Storage temperature: -55℃~+70℃.
17. Operating voltage: 220×(1±10%)V, 50×(1±5%)Hz
