Low Noise Amplifier

The company has launched a variety of coaxial and waveguide low-noise amplifiers with ultra-low noise figures and high gain flatness, covering operating frequencies from 1MHz to 170GHz, which can meet customers' requirements for low power consumption, low noise, miniaturization, high reliability and stability in different application fields.

Consult

Features Technical Indicators Overall Dimension

Serial number	Performance parameters	Minimum	Typical Value	Maximum	Unit
1	Frequency	17.7-22			GHz
2	Channel Gain		6±2		dB
3	Gain Flatness			±1.5	dB
4	Noise temperature			170	K
5	Input and output standing wave ratio			1.8	:1
6	1dB Compression Point	10			dBm
7	Gain frequency	Full frequency range ±1.5dB, ±0.2dB/40MHz			dB
8	Gain stability	±0.1/hour, ±0.2/day, ±0.5/month (tested after reaching thermal equilibrium)
9	IMD3	≤-40(when output power is -10dBm)
10	In-band overload	At 0dBm input, its performance does not permanently deteriorate
11	DC Current		150		mA
12	Input/Output Connectors	FBM220/SMA-50K
13	Power supply interface	DC12~18V/SMA-50K

Product Model	Frequency range (GHz)	Noise Figure (dB)	Gain (dB)	Gain flatness (dB)	VSWR	P-1 (dBm)	Voltage/Current (V/mA)
LNA07250775GMW60	7.25-7.75	1.0	60±2	±1	1.35	10	12~18V/150mA
LNA07750900GW50	7.75-9	0.7	50	1.0	1.25	13	15V/200mA
LNA079090GMW50	7.9-9	1.1	50	±0.8	1.3	10	15V/150mA
LNA10701275GMW60	10.7-12.75	1.0	60±2	±1.0	1.5	10	12~18V/150mA

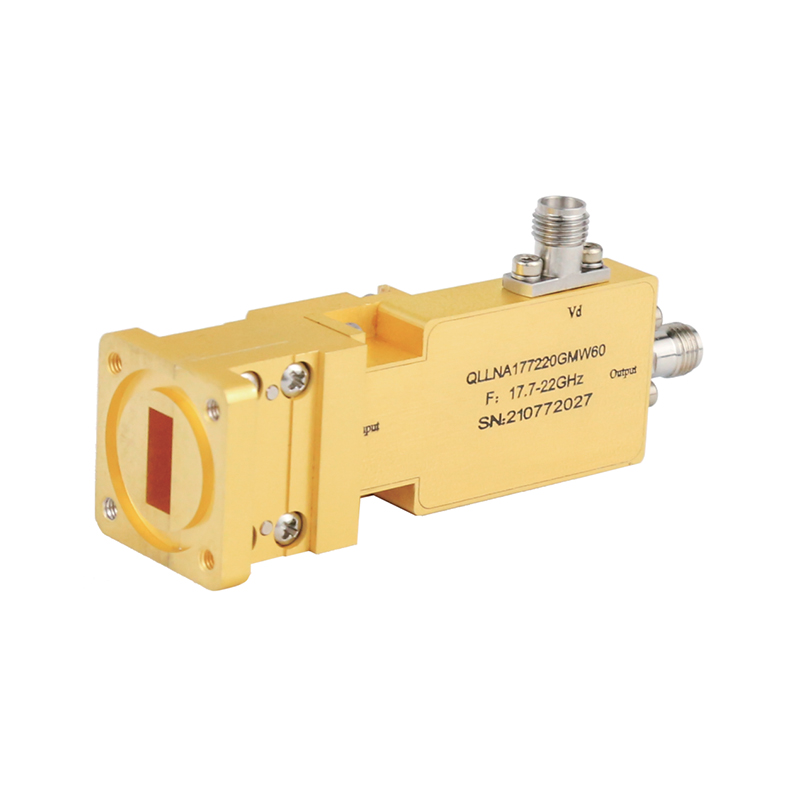

LNA177220GMW60	17.7-22	2.0	60±2	±1.5	1.8	10	12~18V/150mA
LNA202212GMW60	20.2-21.2	1.8	60±1	0.5/24h	1.8	10	24V/170mA
LLNA370425GW45	37-42.5	3.0	45	±1.	1.4	8	12V/200mA
LNA435455GMW30	43.5-45.5	3.01	30±1	±1	1.8	10	24V/150mA
