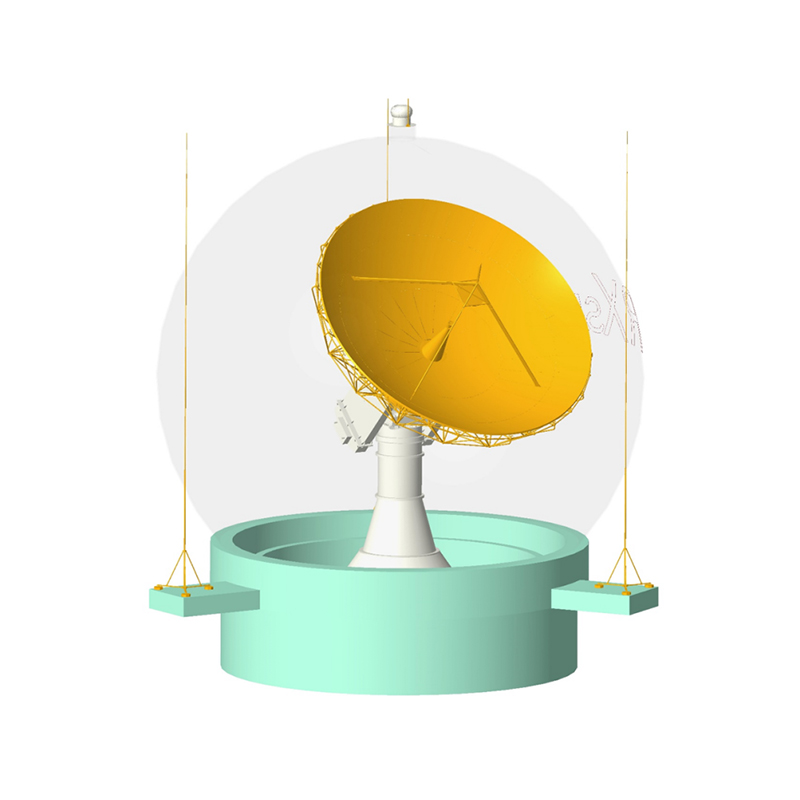

Product Model | RX-7.3GCS | RX-12GCS | ||
Antenna aperture | 7.3m | 12m | ||
S-Band | Receiving frequency | 2200MHz~2300MHz | ||
Transmitting frequency | 2025MHz~2120MHz | |||
X-Band | Receiving frequency | 7700MHz~8500MHz (expandable to 7500MHz~9000MHz) | ||
Transmitting frequency | 7100MHz~7300MHz | |||
G/T | S-Band | ≥17.5dB/K@2.25GHz | ≥22 dB/K@2.25GHz | |
X-Band | ≥29dB/K@8.2GHz | ≥33 dB/K@8.2GHz | ||
EIRP | S-Band | ≥55dBW@2.05GHz | ≥59dBW@2.05GHz | |
X-Band | ≥73dBW@7.2GHz | ≥77dBW@7.2GHz | ||
Polarization | Take over | Support left/right rotation switching, or left/right rotation working at the same time | ||
Emission | Support left-hand polarization/right-hand polarization switching | |||
Seat type | A-E-T | |||
Antenna rotation range | Azimuth: 0°±355° Pitch: -1°～181° Tilt: 0°～±175° | |||
Antenna rotation angular velocity | Azimuth: ≥20 (º)/s Pitch: ≥10 (º)/s Tilt: ≥5 (º)/s | |||
Antenna rotation angular acceleration | Azimuth: ≥10 (º)/s2 Pitch: ≥10 (º)/s2 Tilt: ≥5 (º)/s2 | |||
Pointing accuracy | Better than 1/5 half power beam width | |||
Tracking accuracy | Better than 1/10 half power beam width | |||
Operating voltage | AC-380×（1±10％）V，50×（1±5％）Hz | |||
Peak power consumption | 40KW~45KW | 154KW~160KW | ||
Environmental adaptability | Indoor temperature | 25℃±10℃ | ||
Outdoor temperature | -40℃±55℃ | |||
Wind resistance | Normal operation in wind force 8 and no damage in wind force 12 | |||
