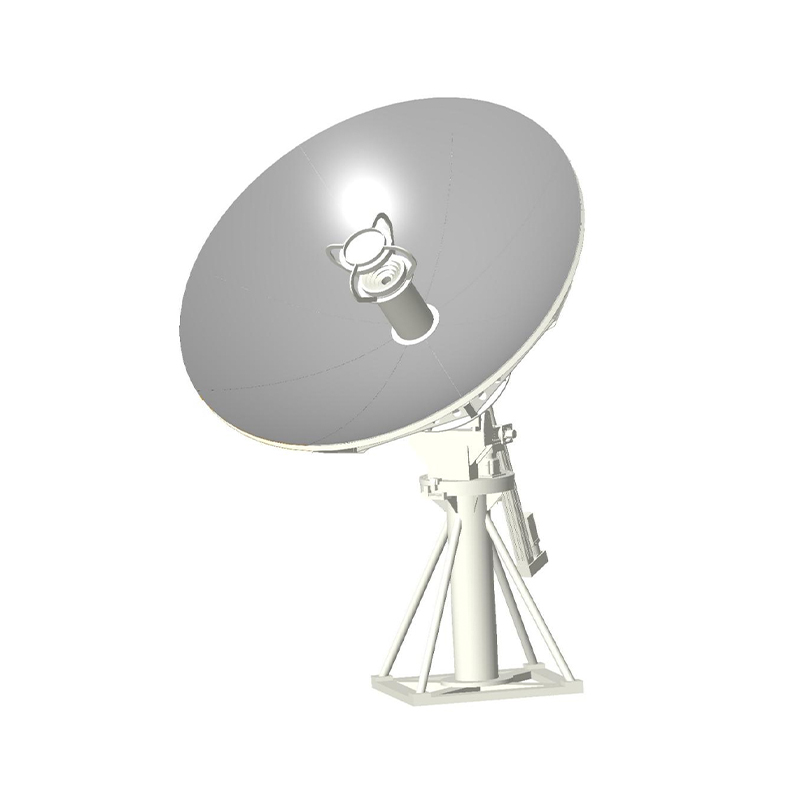

Product Model | RX-3mCKu | RX-4.5mCKu | RX-5.4mCKu | RX-7.3mCKu |
Antenna aperture | 3m | 4.5m | 5.4m | 7.3m |
Antenna type | Ring Focus Antenna | Cassegrain antenna | ||
Seat type | A/Z mount (full motion) | |||
Antenna rotation range | Azimuth: ±300° Pitch: 0°~+90° | |||
Antenna rotation speed | Maximum angular velocity: 2°/s, acceleration: 0.5°/s2 | |||
Receiving frequency | 3.6~4.2GHz 10.95~12.75GHz | 3.6~4.2GHz 10.95~12.75GHz | 3.6~4.2GHz 10.95~12.75GHz | 3.6~4.2GHz 10.95~12.75GHz |
Transmitting frequency | / | / | 5.85~6.425GHz 14~14.5GHz | 5.85~6.425GHz 14~14.5GHz |
G/T | ≥16.83dB/K@4GHz ≥26.37dB/K@12GHz | ≥20.35dB/K@4GHz ≥29.89dB/K@12GHz | ≥21.77dB/K@4GHz ≥31.31dB/K@12GHz | ≥24.38 dB/K@4GHz ≥33.93dB/K@12GHz |
EIRP | / | / | ≥63dBW@4GHz ≥74dBW@12GHz | ≥65dBW@4GHz ≥76dBW@12GHz |
Polarization | Horizontal polarization/ | Horizontal polarization/ or left-handed/ | Horizontal polarization/ or left-handed/ | Horizontal polarization/ or left-handed/ |
Polarization adjustment range | ±90° | ±90° | ±90° | ±90° |
Pointing accuracy | 0.1° | 0.1° | 0.1° | 0.08° |
Tracking accuracy | 0.08° | 0.065° | 0.05° | 0.03° |
Antenna operation mode | Self-tracking, program guidance, pointing, manual tracking | |||
