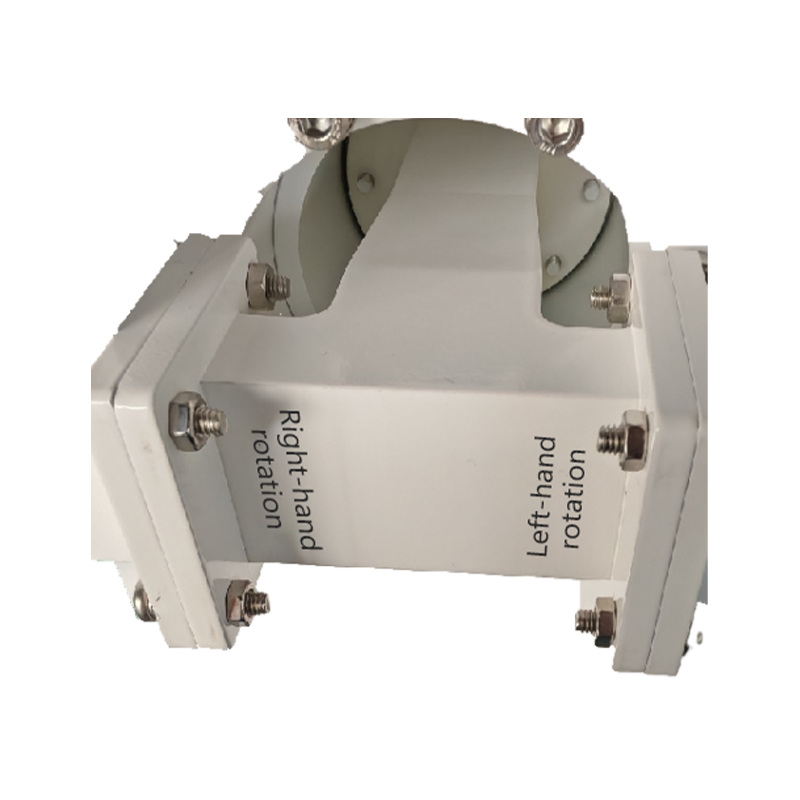

Waveguide Circular Polarizer

A circular polarizer is a polarization conversion device that converts linear polarization waves into circular polarization waves. It is usually used in one piece with the feed source of the antenna, antenna unit or reflective antenna, or can also be used as a single device and then connected to the feeding system.

Consult

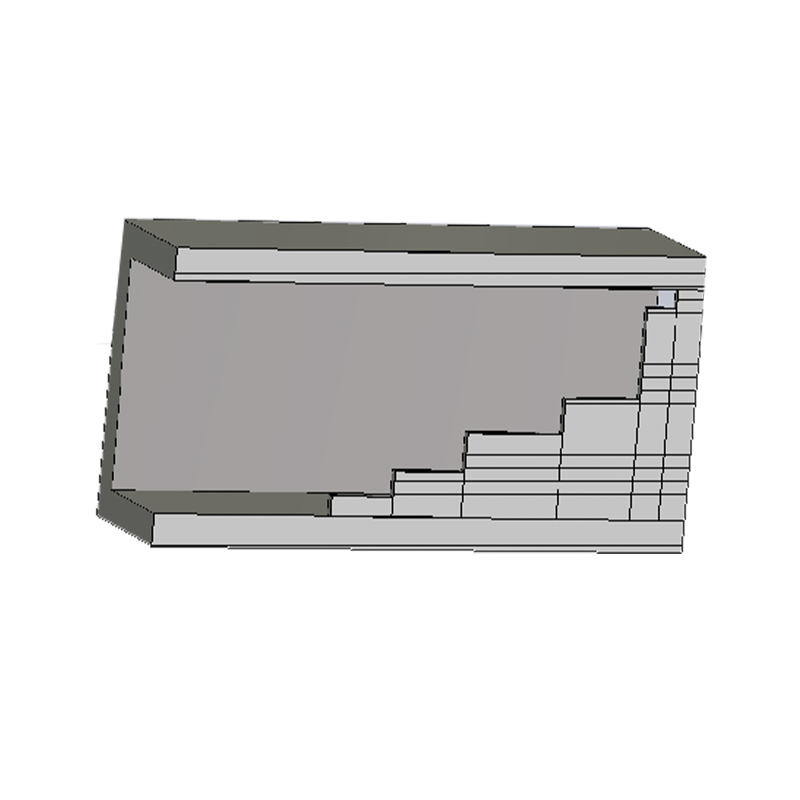

Features Technical Indicators Overall Dimension

Model	Frequency range (GHz)	Working bandwidth	Axis Ratio	Standing Wave	Material
RX-60.04RTCWPS	3.4~6.725	≤66%	Tx<0.75;Rx<2	1.35	Aluminum
RX-71.42RTCWPS	3.4~6.725	≤62%	Tx<0.6:Rx<1.9	1.35	Aluminum
RX-51.99RTCWPS	3.4~6.725	≤54%	Tx<0.5:Rx<1.9	1.35	Aluminum
RX-10RTCWPS	20.4~30.7	≤12%	Tx<0.9;Rx<1.9	1.35	Aluminum
