Waveguide Duplexer

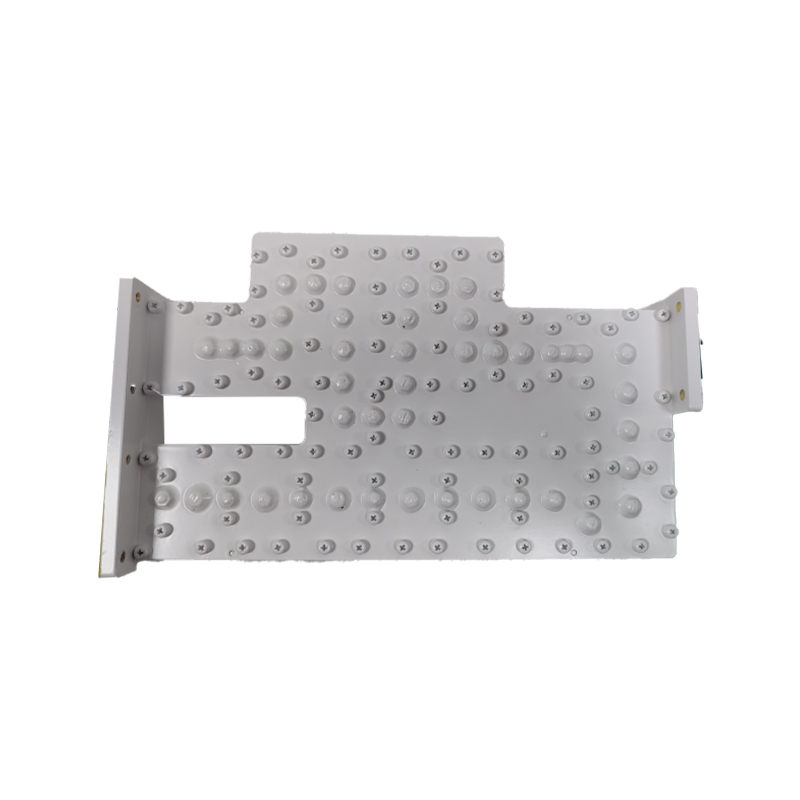

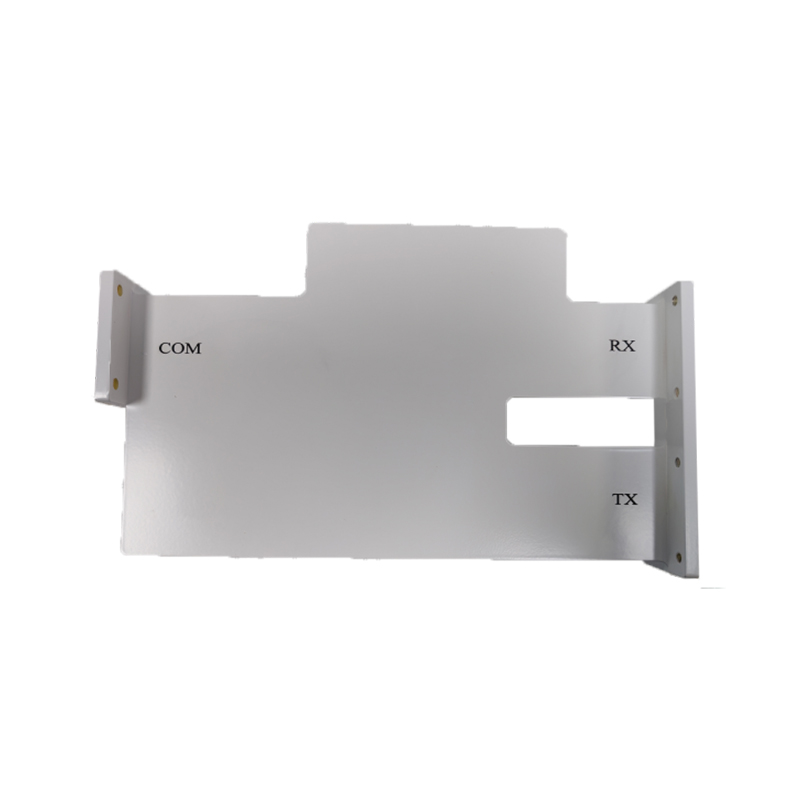

The main function of the duplexer is to isolate the transmit and receive signals of different frequencies to ensure that both reception and transmission can work normally at the same time. Two sets of stopband filters with different frequencies (WDIP) can be composed of two sets of stopband filters with different frequencies to avoid transmitting the transmit signal to the receiver. The separation or synthesis of two different orthogonal polarized waves can also be achieved using an orthogonal mode coupler (OMT).

Consult

Features Technical Indicators Overall Dimension

Model	Frequency range (GHz)	Isolation	Insertion loss	Standing Wave	Material
RX-100WDIP	F(T)=10.03GHZ F(R)=10.23GHZ	≥40	≤0.5	1.2	Copper
RX-120WDIP	F(T)=12.25-12.75GHz F(R)=13.75-14.50GHZ	≥70	≤0.6	1.35	Copper
RX-220WDIP	F(RX)=19.2-21.2GHZ F(TX)=29-31GHZ	≥85	≤0.5	1.2	Copper
RX-620FBC8T	F:50G/54G/58G/62G/64G	≥20	≤2.7	2	Copper
