Waveguide Switch

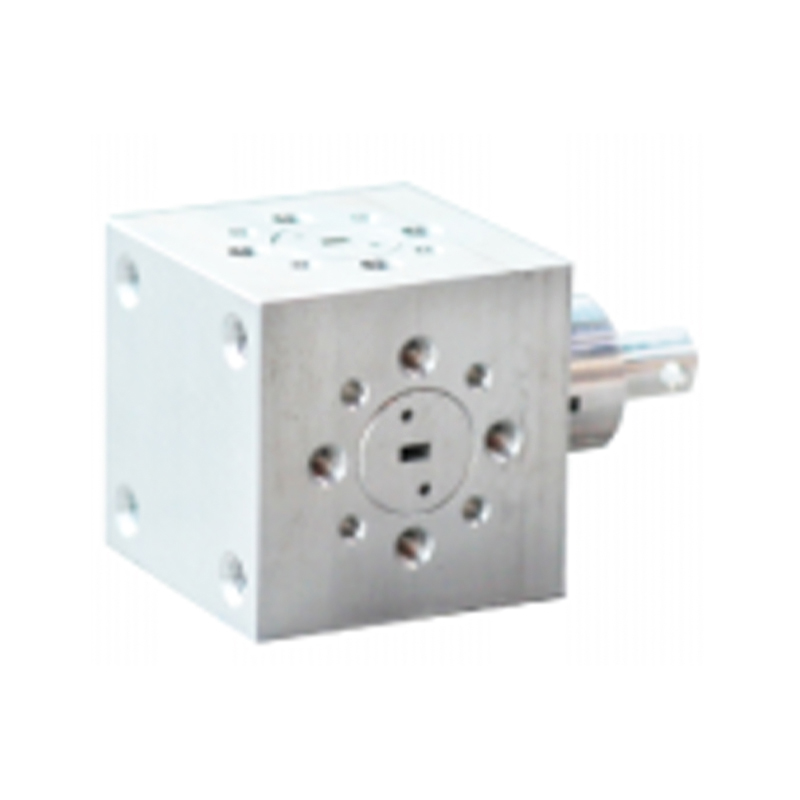

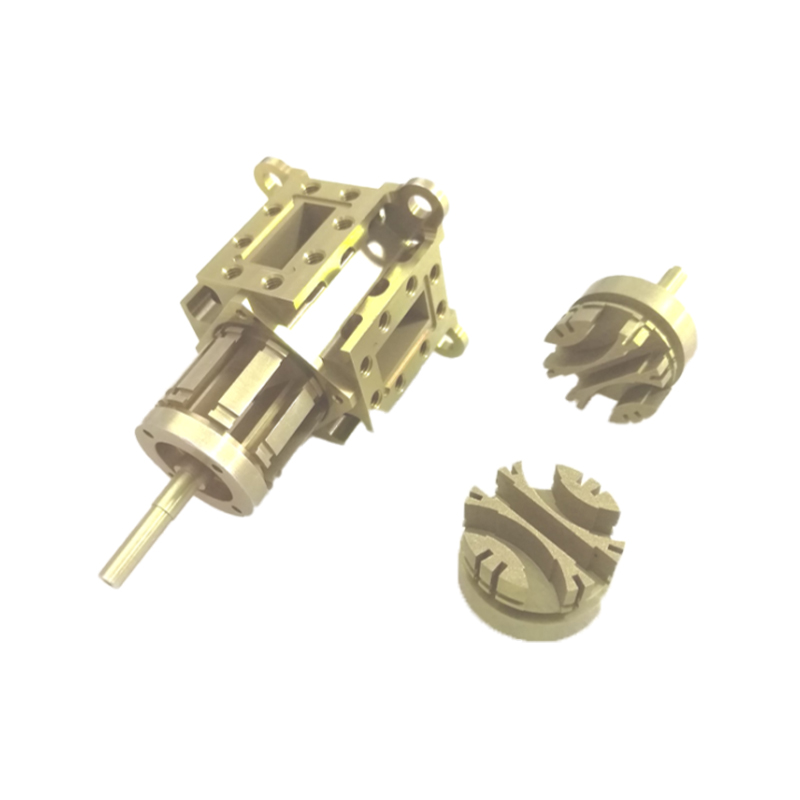

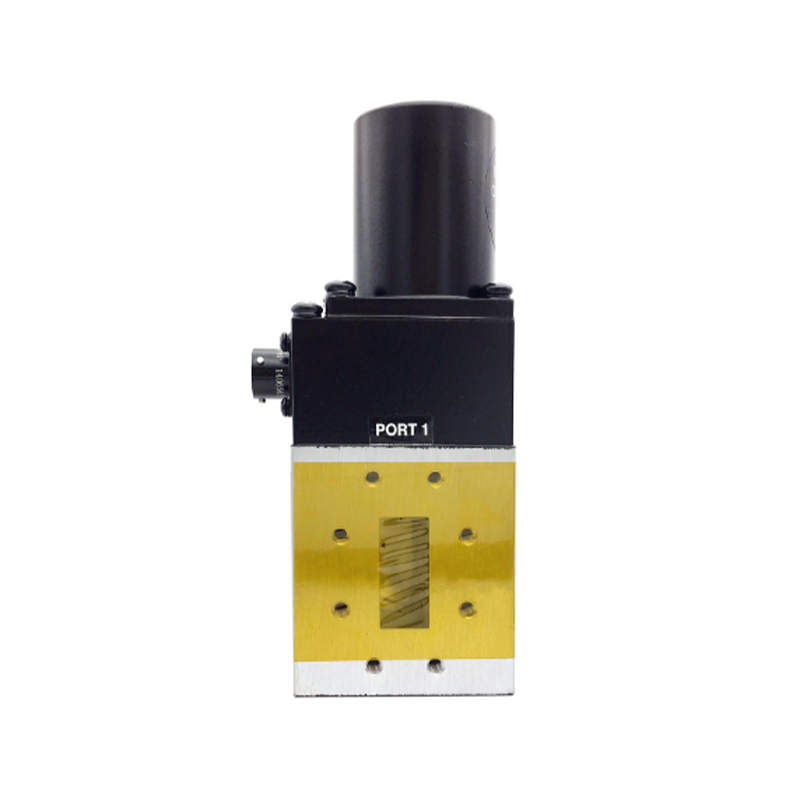

A 4-port waveguide switch is available, manual, automatic, and optionally equipped with 2 or 3-channel rotors. The efficient choke design ensures high RF isolation between uncoupled ports. Reliable rotor indexing mechanisms enable accurate channel-to-port alignment and excellent repeatability, providing the advantages of long-term use without degradation in performance.

Consult

Features Technical Indicators Overall Dimension

Frequency range	Waveguide	VSWR	Insertion loss	Frequency range	Waveguide
114GHz-173GHz	WR6	1.2	1.3dB	114GHz-173GHz	WR6
93GHz-140GHz	WR8	1.2	0.8dB	93GHz-140GHz	WR8
75GHz-115GHz	WR10	1.1	0.6dB	75GHz-115GHz	WR10
60GHz-92GHz	WR12	1.1	0.5dB	60GHz-92GHz	WR12
50GHz-75GHz	WR15	1.1	0.5dB	50GHz-75GHz	WR15
40GHz-60GHz	WR19	1.1	0.4dB	40GHz-60GHz	WR19
33GHz-50GHz	WR22	1.1	0.3dB	33GHz-50GHz	WR22
26GHz-40GHz	WR28	1.1	0.3dB	26GHz-40GHz	WR28
20GHz-33GHz	WR34	1.1	0.3dB	20GHz-33GHz	WR34
17GHz-26GHz	WR42	1.1	0.3dB	17GHz-26GHz	WR42
15GHz-22GHz	WR51	1.1	0.2dB	15GHz-22GHz	WR51
12GHz-18GHz	WR62	1.1	0.2dB	12GHz-18GHz	WR62
10GHz-15GHz	WR75	1.1	0.2dB	10GHz-15GHz	WR75
8GHz-12.5GHz	WR90	1.1	0.15dB	8GHz-12.5GHz	WR90
