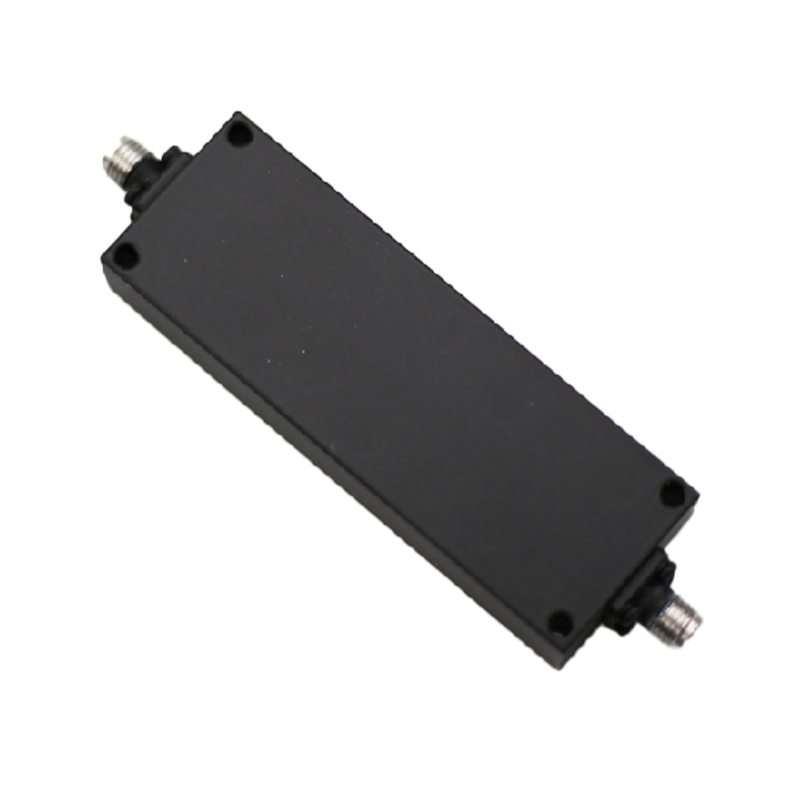

Filter

This filter uses a simple and effective waveguide cutoff filter technology. Through precision processing, it can effectively suppress and communicate with the out-of-band frequency signals in the communication system. Power within 10W can be handled at 18GHz to 220GHZ.

Consult

Features Technical Indicators Overall Dimension

Model	Frequency range	Typical passband	Maximum passband	VSWR	Model
RX-LBQ-001	18GHz-26.5GHz	0.25	0.4	1.5:1	RX-LBQ-001
RX-LBQ-002	26.5GHz-40GHz	0.25	0.4	1.5:1	RX-LBQ-002
RX-LBQ-003	33GHz-50GHz	0.3	0.5	1.5:1	RX-LBQ-003
RX-LBQ-004	40GHz-60GHz	0.35	0.55	1.5:1	RX-LBQ-004
RX-LBQ-005	50GHz-75GHz	0.35	0.55	1.5:1	RX-LBQ-005
RX-LBQ-006	60GHz-90GHz	0.45	0.75	1.5:1	RX-LBQ-006
RX-LBQ-007	75GHz-110GHz	0.6	0.9	1.5:1	RX-LBQ-007
RX-LBQ-008	90GHz-140GHz	0.6	0.9	1.5:1	RX-LBQ-008
RX-LBQ-009	110GHz-170GHz	0.65	1.0	1.5:1	RX-LBQ-009
RX-LBQ-010	140GHz-220GHz	0.7	1.1	1.5:1	RX-LBQ-010
