Power Divider/Combiner

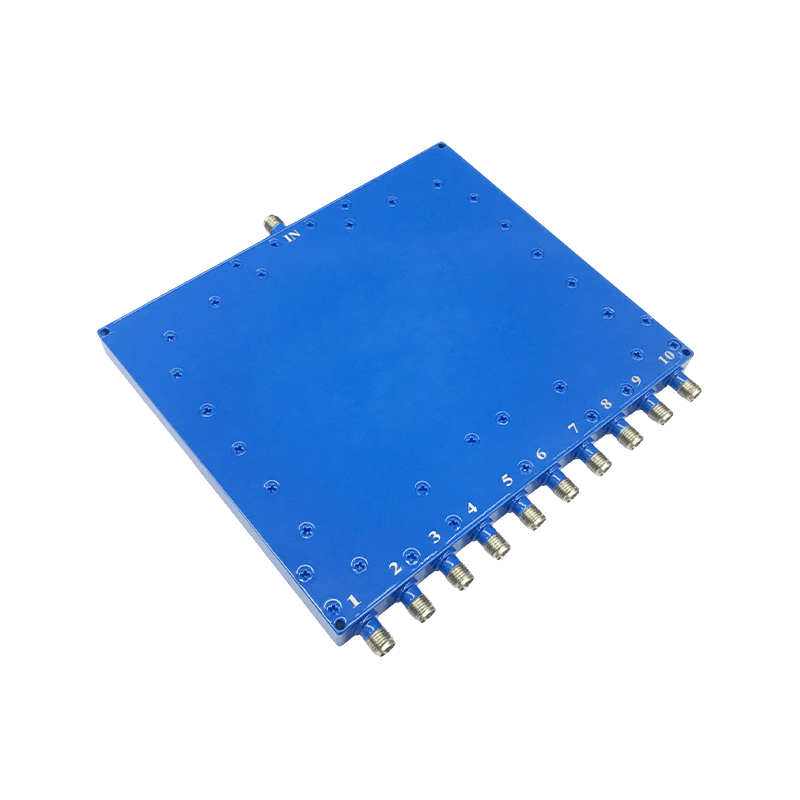

Power splitter/combinator is suitable for use in RF and microwave circuits as power distribution, and is widely used in mobile communications and ultra-wideband fields such as satellites, radars, electronic warfare, test equipment, etc. It provides up to dozens of power splitter combiners, with a frequency coverage of 2.4~112GHz, from 2 channels to 256 channels, and can be customized. The waveguide power splitter has the characteristics of good frequency characteristics, stable performance, high accuracy, large power and high reliability.

Consult

Features Technical Indicators Overall Dimension

Model	Number of routes	Frequency range	Waveguide Type	Flange Type	Input/output standing wave

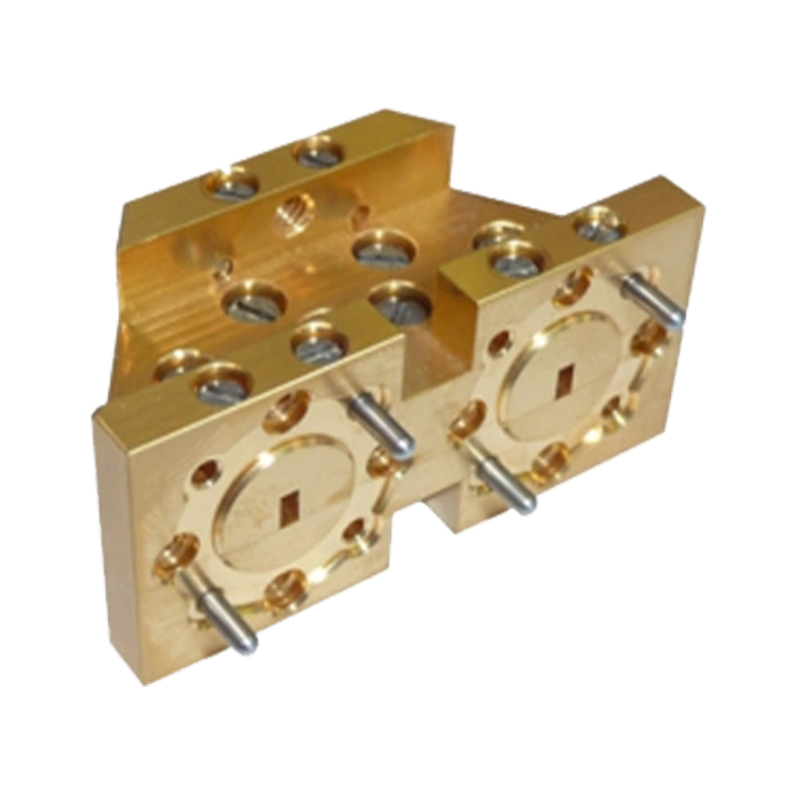

RX-GFBD-001	2	73.8GHz-112GHz	WR10	FUGP900 round flange	1.3 1.3
RX-GFBD-002	2	40GHz-46GHz	WR22	FUGP400 round flange	1.3 1.3
RX-GFBD-003	2	18-26.5GHz	WR42	FBP220(UBR) square flange	1.15 1.15
RX-GFBD-004	8	18-26.5GHz	WR42	FBP220(UBR) square flange	1.4 1.4
RX-GFBD-005	4	2.4GHz-2.5GHz	WR340	FDP26(UDR) rectangular flange	1.2 1.2
RX-GFBD-006	4	2.4GHz-2.5GHz	WR340	FDP26(UDR) rectangular flange	1.2 1.2
