Rotary Joint

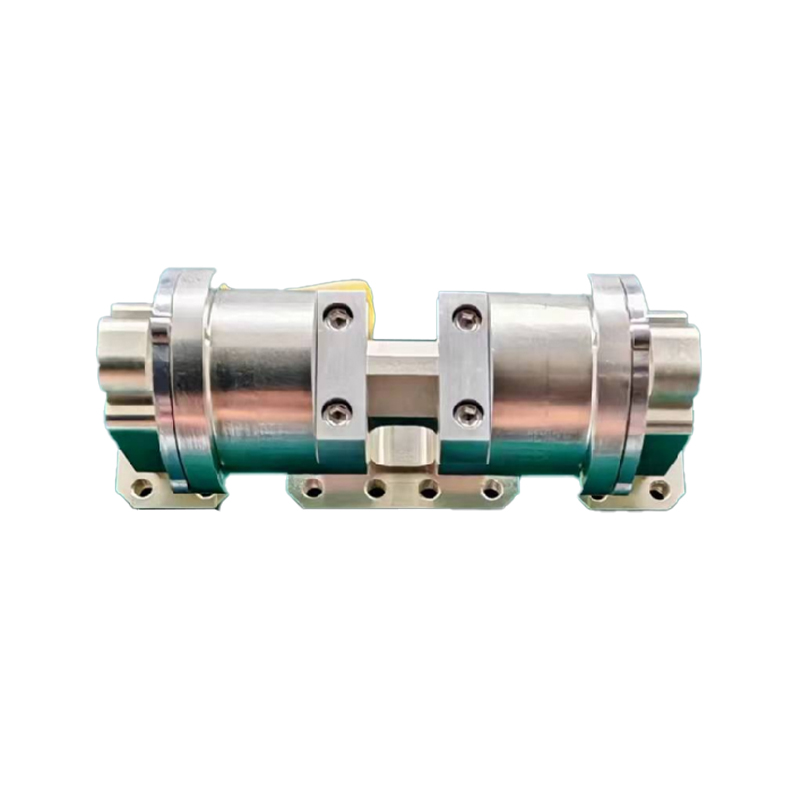

The rotating joint is mainly used to connect the fixed part and the rotating part in the communication feeder system. It can be divided into L-shaped and U-shaped according to the structural form, and can be divided into single-channel, dual-channel and multi-channel rotating joints according to the composition channel. The product frequency range covers 2.6-80GHz.

Consult

Features Technical Indicators Overall Dimension

Model	Frequency range (GHz)	weight	Insertion loss	Standing Wave	lubricating
RXFT-XZGJ-BJ400V0	37-50	≤70g	≤0.3	≤1.5	Oil lubrication
RXFT-YHXZGJ-BJ400V1	37-50	≤70g	＜0.3	≤1.35	Grease lubrication
RXFT-SHXZGJ-BJ400V2	37.5-49.95	≤70g	＜0.3	≤1.35	Grease lubrication
RXFT-QLXZGJ-BJ620V1	41-64.5	≤60g	≤0.5	≤1.5	Oil lubrication
