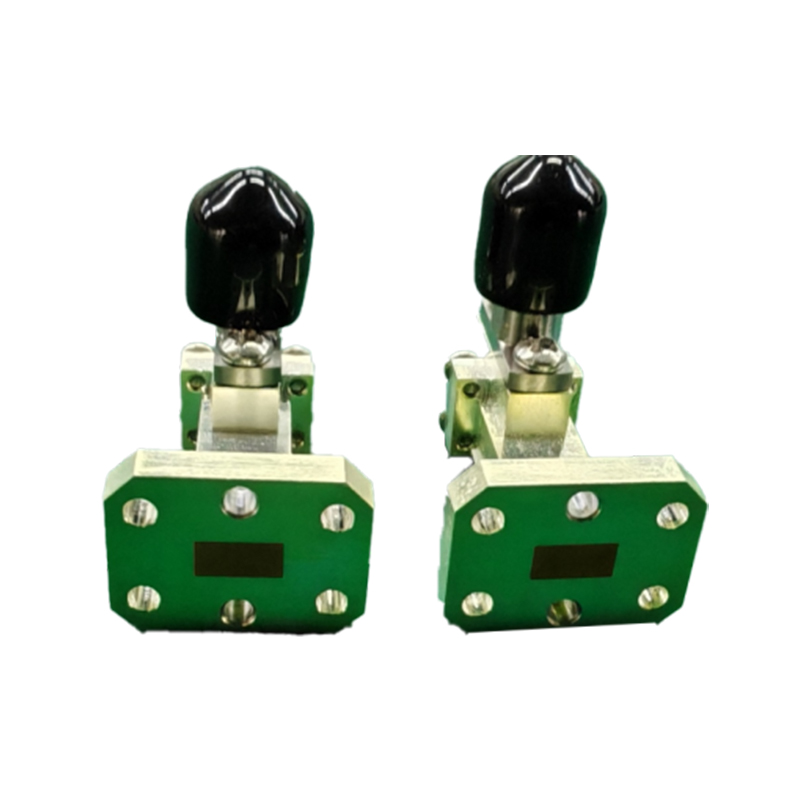

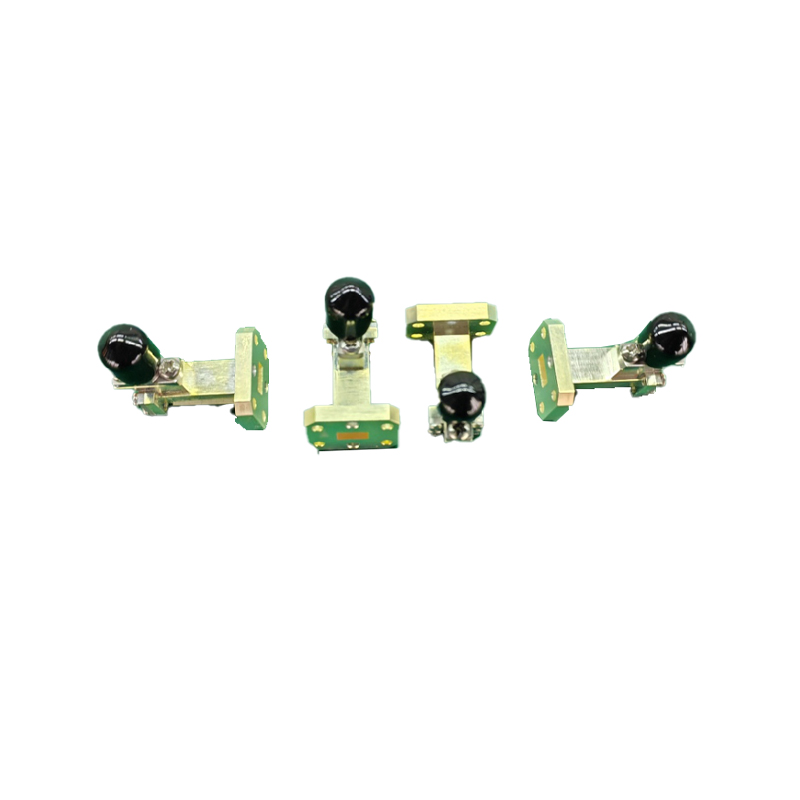

Waveguide Coaxial Conversion

The waveguide coaxial conversion series products have the characteristics of frequency bandwidth, complete specifications and varieties, voltage standing wave ratio and low insertion loss. The frequency coverage range is 0.3~110GHz. It has low voltage standing wave ratio performance of <1.25 and 10% bandwidth within the full waveguide bandwidth. It is divided into two types: termination and orthogonal. The factory stand-alone wave ratio measurement of this type of product is to measure the S11 value or VSWR value at the coaxial end at the coaxial end.

Consult

Features Technical Indicators Overall Dimension

Model	Frequency range	Length (mm)	Average power (W)	Standing Wave	Insertion loss
RX-CAN-84	0.84GHz-2GHz	300	800	≤1.5	≤0.5dB
RX-CAN-150	1.5GHz-3.6GHz	160	800	1.5	0.5dB
RX-CAN-200	2GHz-4.8GHz	120	500	1.5	0.5dB
RX-CAN-250	2.5GHz-7.8GHz	85	500	1.5	0.5dB
RX-CAN-350	3.5GHz-8.2GHz	80	500	1.5	0.5dB
RX-CAN-475	4.75GHz-11GHz	50	300	1.5	0.5dB
RX-CAS-500	5GHz-18GHz	45	300	1.5	0.5dB
