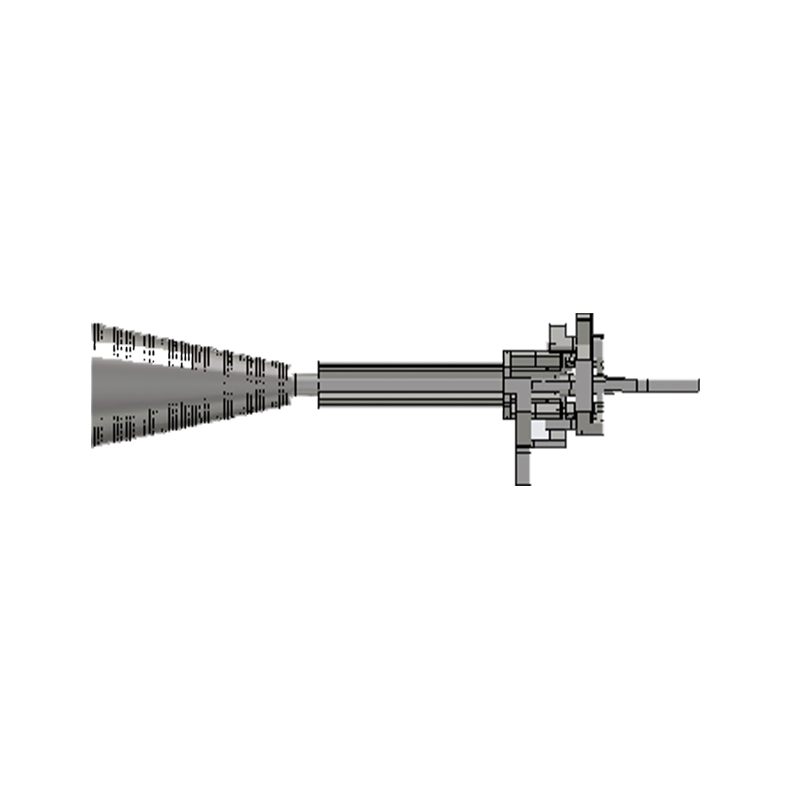

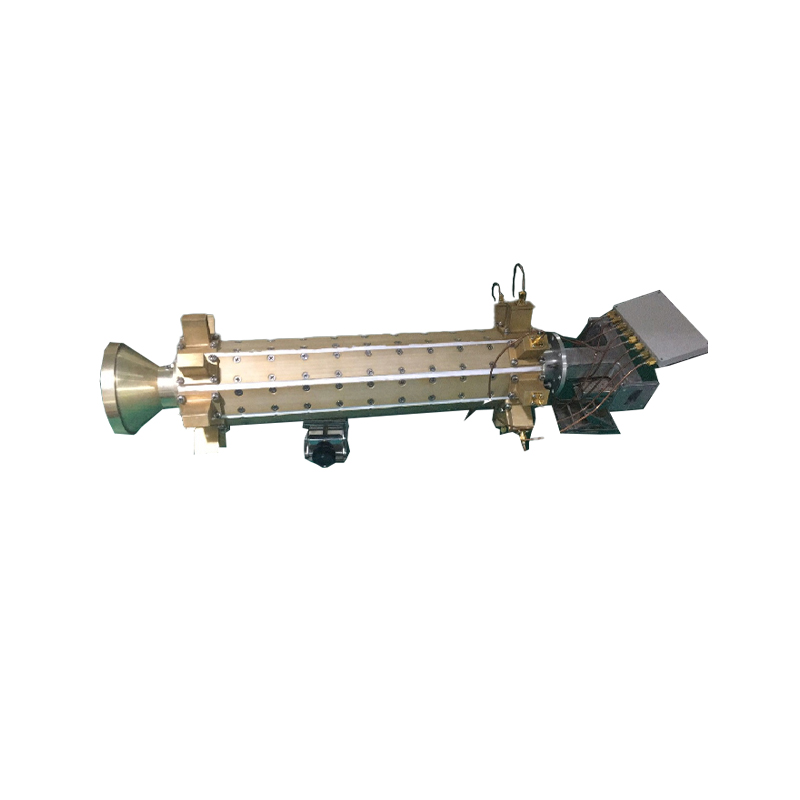

Single pulse feedWorking frequency band: X-band (7.145G-9G)Antenna gain: ≥57dBiSum and difference network: TE21 mode couplerCircular polarization: LCHP\RCHP sum and difference signalKey product breakthroughsIt can simultaneously receive X-band wireless signals, and obtain 1 left-handed sum signal L∑ and 1 right-handed sum signal R∑.It can generate left-handed azimuth and elevation RF modulation signals ML△A+ML△E, and combine them with left-handed sum signals to output ML∑=ML△A+ML△E+L∑. It can generate right-handed azimuth and elevation RF modulation signals MR△A+MR△E, and combine them with left-handed sum signals to output MR∑=MR△A+MR△E+R∑. The left-handed combined signal ML∑ and the right-handed combined signal MR∑ can be switched, it also has the performance advantages of compactness, high gain, and low side lobes.

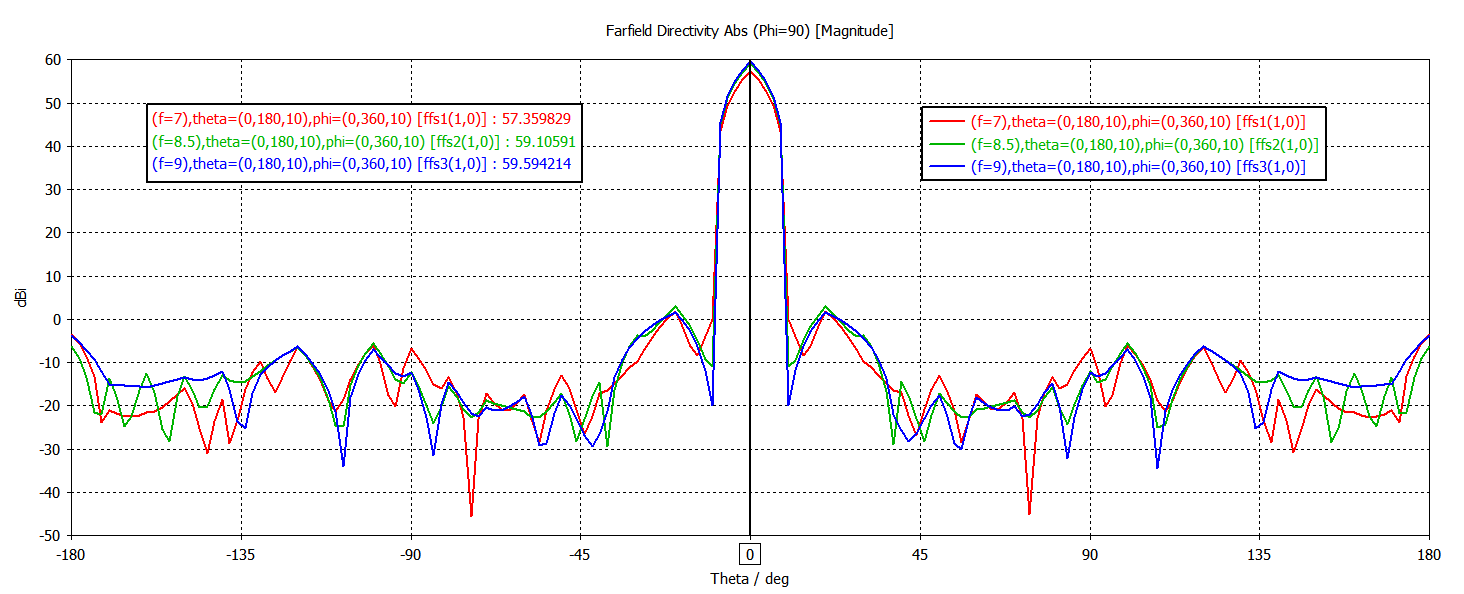

1D-Antenna Gain Diagram
