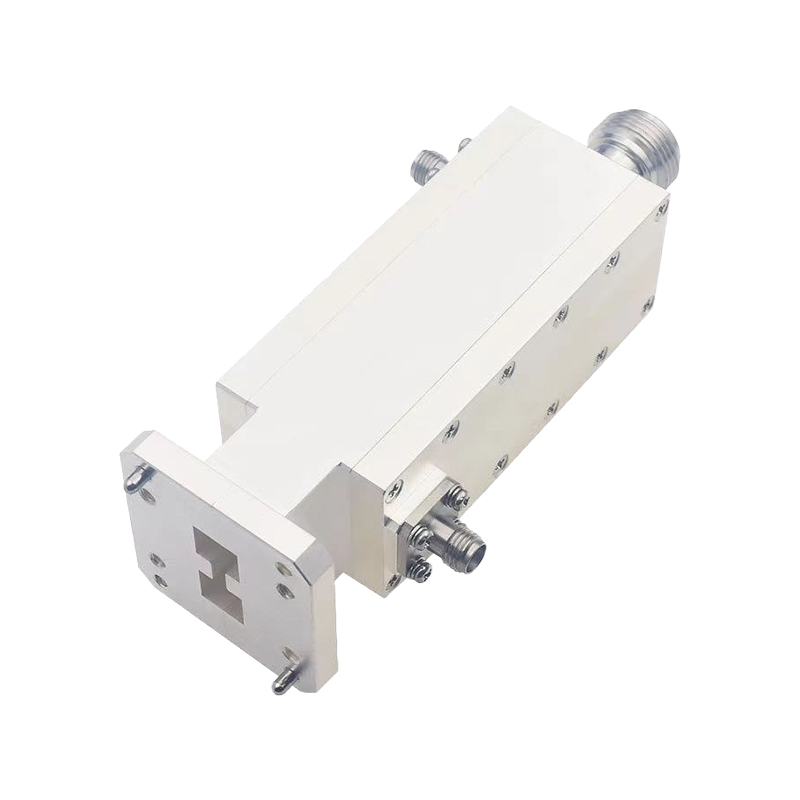

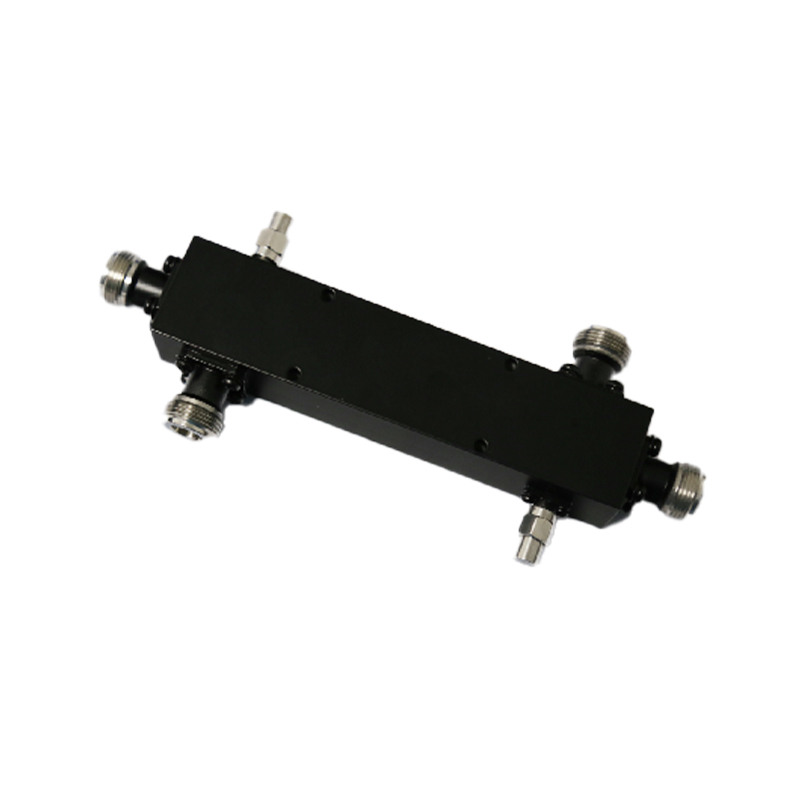

Waveguide Coupler

Coupler is one of the commonly used components in microwave transmission systems of communication electronic equipment. The waveguide directional coupler is a four-port device.

Consult

Features Technical Indicators Overall Dimension

型号	频率范围(GHz)	波导类型	耦合度	驻波	方向性
RX-32W2HSC40NT1	F1:5.2-8 F2:7.8-12	WR284	C1:40 C2:40	1.15	D1≥25 D2≥15
RX-48W2HSC40NT1	F1:8-12 F2:12-18	WR187	C1:40 C2:40	1.15	D1≥20 D2≥20
RX-84W2HSC60P	F1:8.6-9.5 F2:17-19	WR112	C1:60 C2:40	1.15	D1≥25 D2≥25
RX-84W3HSC55N	F1:7.5-8.7 F2:15-17.4 F3:22 5-26 1	WR112	C1:55 C2:45 C3:45	1.15	D1≥25 D2≥15 D3≥15
