Conical Corrugated Horn Antenna (Covering Terahertz)

Conical Corrugated Horn Antenna (Covering Terahertz)

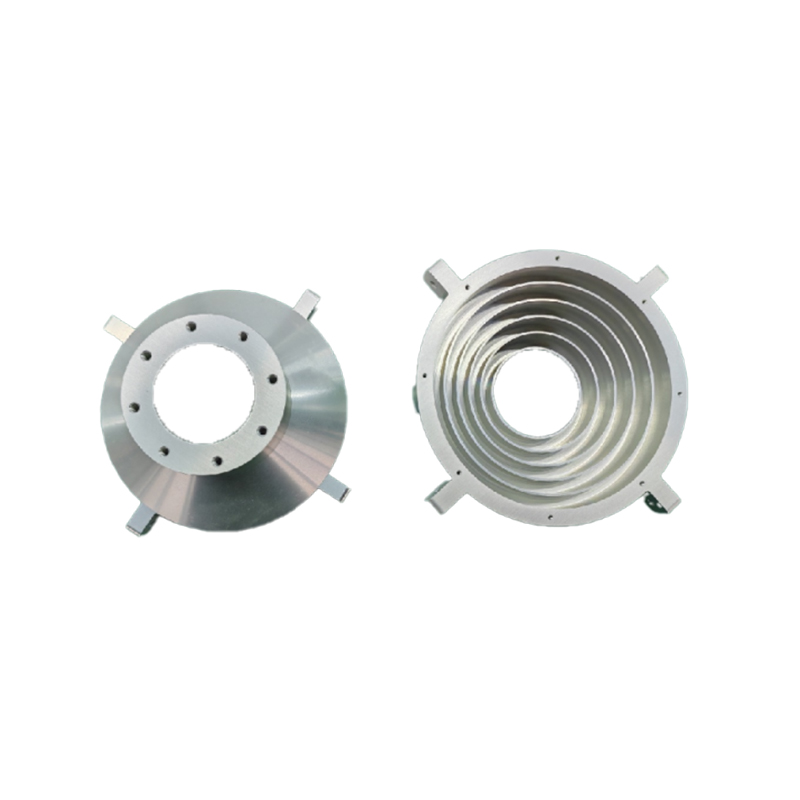

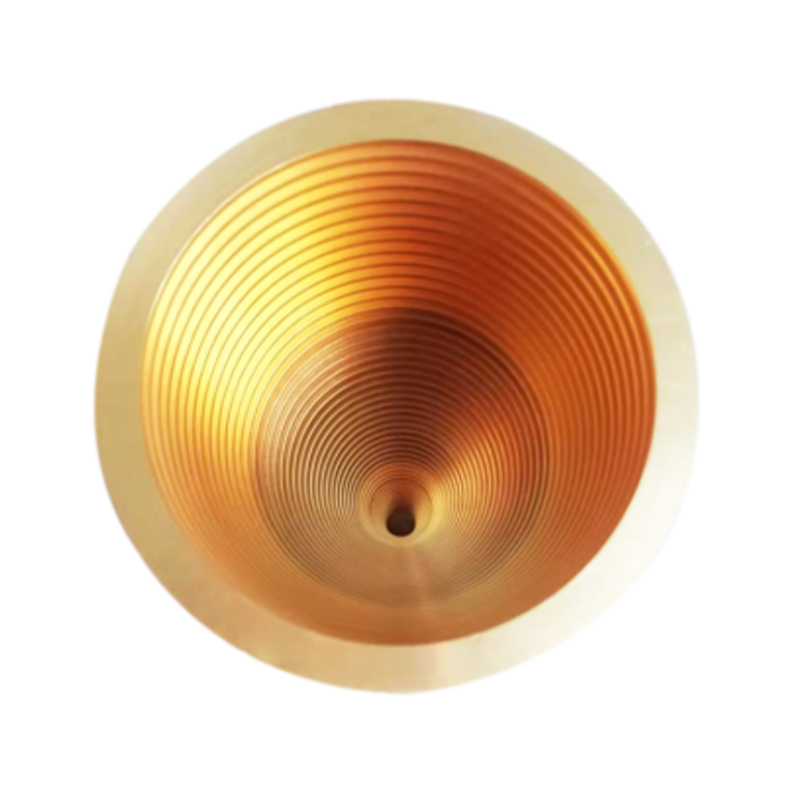

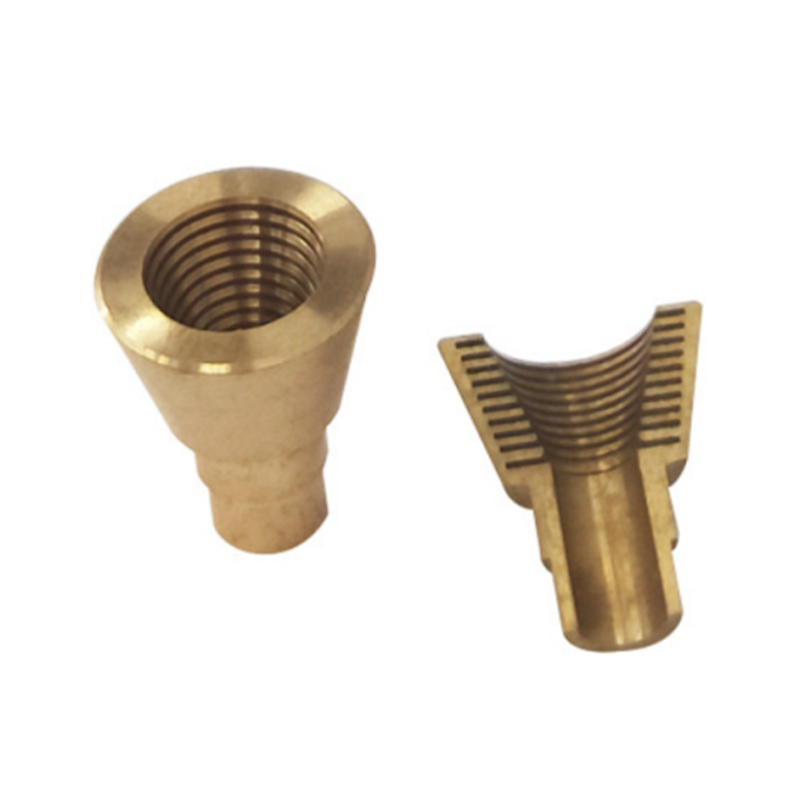

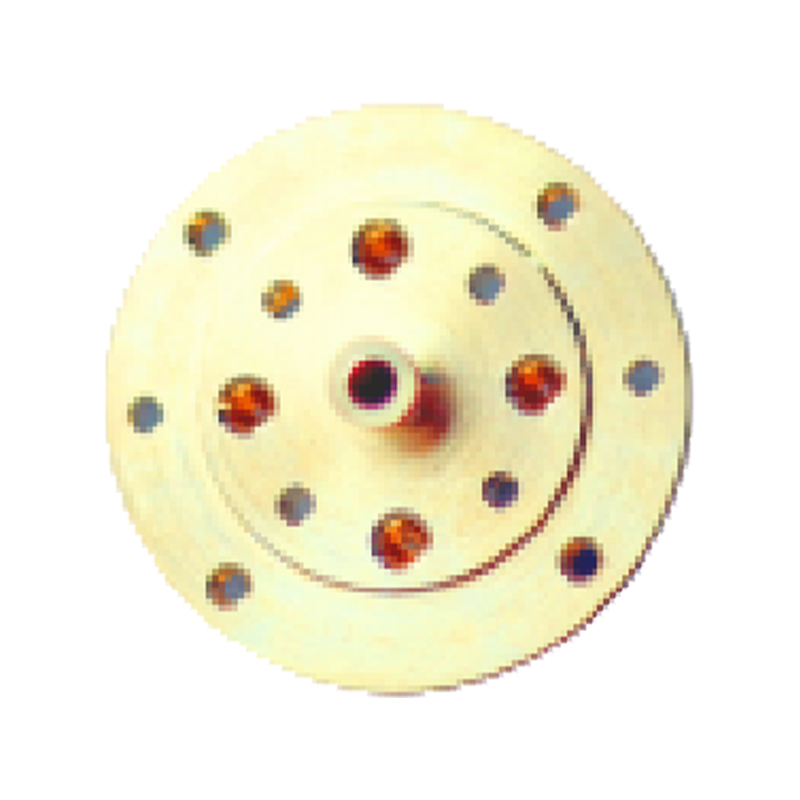

Conical corrugated horns are widely used in the aerospace industry. Conical corrugated horn antennas are precision machined and gold plated. These horns have minimal return loss and a gain of 20dB to 24dB. Horns with different gain values can be customized.

Consult

Features Technical Indicators Overall Dimension

Frequency: 18GHz-1000GHz
With full waveguide bandwidth coverage
EH plane symmetry
Extremely low cross polarization
Low standing wave ratio

Model	Waveguide	Flange	Frequency (GHz)	Gain(dB)	Standing Wave
RX-YZLB-001	WR1.5	UG-387/U	500-750	24.0	1.5
RX-YZLB-002	WR2.2	UG-387/U	330-500	24.0	1.2
RX-YZLB-003	WR2.8	UG-387/U	260-400	24.0	1.1
RX-YZLB-004	WR3	UG-387/U	220-325	24.0	1.1
RX-YZLB-005	WR4	UG-387/U	170-260	24.0	1.1
RX-YZLB-006	WR5	UG-387/U	140-220	24.0	1.1
RX-YZLB-007	WR6	UG-387/U	110-170	24.0	1.1
RX-YZLB-008	WR8	UG-387/U	90-140	24.0	1.1
RX-YZLB-009	WR10	UG-387/U	75-110	24.0	1.1
RX-YZLB-010	WR15	UG-385/U	50-75	24.0	1.1
RX-YZLB-011	WR28	UG-599/U	26.5-40	20	1.1
RX-YZLB-012	WR42	UG-595/U	18-26.5	20	1.1
