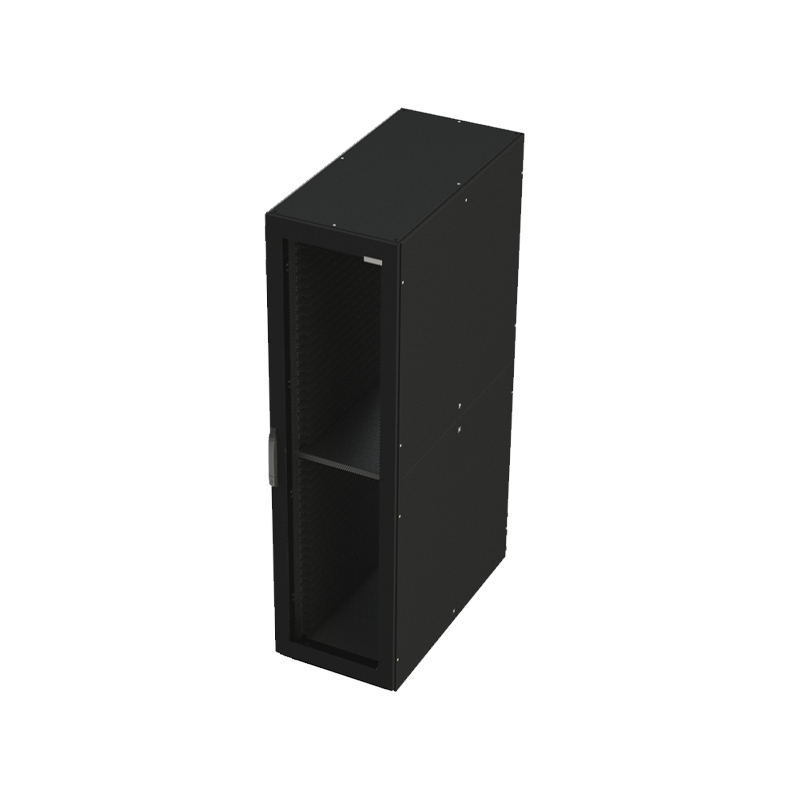

Cabinet (RX-3 Series It Cabinet)
The cabinet adopts an integrated assembly structure, standardized and modular design, and a variety of standard specifications and sizes of cabinets are optional. It is compatible with the 19-inch international standard and has strong interchangeability.
The cabinet surface is pickled and phosphated, the surface spray thickness reaches 70-130 microns, the surface spray hardness is greater than 5H, and the adhesion reaches the national standard of level 0.
The front door is single-opened/the back door is double-opened with mesh door design, with a through-hole rate greater than 75%, and the front and rear door opening angles are ≥120°, which meets the inlet/outlet air volume requirements of high-density server systems.
A special airflow sealing baffle assembly is set inside the cabinet, which is seamlessly connected with the cabinet to ensure that the cold air "goes in and out" and eliminates the loss of cold air.
The embedded side door design is adopted for convenient and quick cabinet connection
Equipped with multi-functional PDU installation requirements and numerical cable tie boards to meet the wiring requirements in the cabinet.
Common cabinet accessories:
1. Load-bearing tray:
Applicable to 19-inch standard cabinets. Optional load-bearing capacity of 80kg or 120kg
2. L-shaped rail:
Applicable to 19-inch standard cabinet, load-bearing capacity of 60kg
3. Blind plate:
Applicable to 19-inch standard cabinet, 1U or 2U optional
4. Cabinet side door:
Applicable to 19-inch standard cabinet, various specifications optional
5. Vertical cable tie plate:
Vertical installation, can be used alone or in pairs
6. Power distribution unit:
A variety of functional accessories are optional.
Intelligent monitoring:
Support B/S architecture, web access does not require software installation
Highly integrated hardware and software integrated dynamic environment monitoring host
Power + environmental monitoring achieves integrated integration
19-inch rack installation, easy maintenance
Intelligent terminal host, complete interfaces, standardized interface connection, convenient construction and fast construction.
With complete historical records and event processing record functions, documents can be exported.
Diversified warning methods: SMS, email, voice, sound and light, etc.
A large-capacity SD card can be built in to store a large amount of data records
Support ModusTCP, MQTT and other northbound interfaces, which can realize cloud private cloud or public cloud platform monitoring.
Support mobile APP management interface.
