19 Inch Liquid Cooled Frame-I

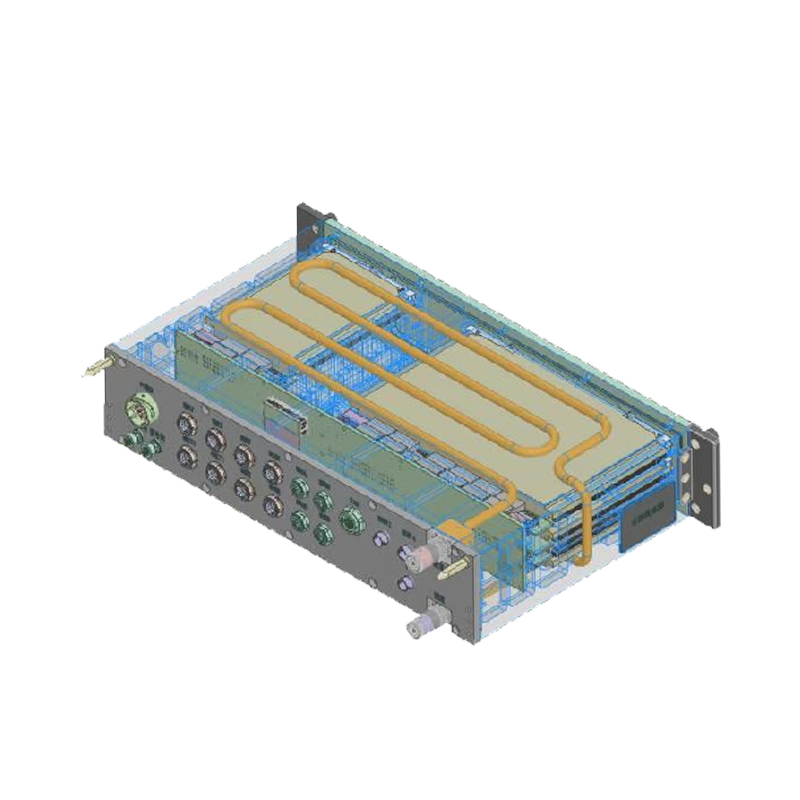

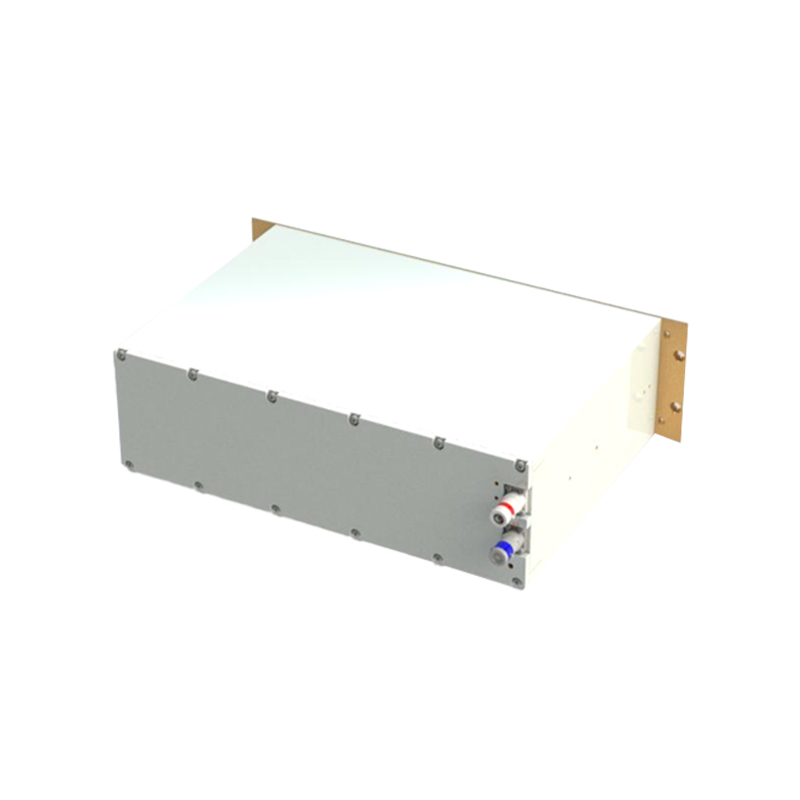

This type of rack is a copper tube flow channel embedded chassis, and the main frame is vacuum brazed. The internal flow channel is a copper tube flow channel, which is embedded and welded inside the rack through a tin brazing process, with high reliability and good heat dissipation performance. This type of chassis is a customized structure of a 19-inch U-type standard chassis, which can be compatible with various standard daughter cards according to needs.
Technical features
1. Material: The liquid cooling frame material is 6061/6063, and the copper tube flow channel material is TP2.
Supply scope: Chassis structure, flow channel, external dimensions, internal layout, surface treatment, etc. can all be customized.
3. Cooling medium: 65# antifreeze.
4. Welding quality: Meet the requirements of Class I welds.
5. Pressure resistance: Inflating pressure 1.8MPa, pressure maintenance 0.5h. No leakage, no plastic deformation.
6. Flow channel cleanliness: The liquid cleanliness after flow channel cleaning must meet the requirements of GB/T24001-2016.
7. Excess: There is no excess larger than 100μm in the flow channel.
8. Pressure cycle: Meet the number of cycles: 2500 times, according to 0MPa (gauge pressure, the same below) → 1.6MPa → 0MPa cycle, the cycle rate is greater than or equal to 40 times/min.
9. The flow channel height and wall thickness meet ±0.15mm.
10. Coating color difference: According to GB/T9761-2008 "Visual color comparison of paint and varnish paint" and compared with the standard sample, the color difference ΔE≤2.
11. Coating adhesion: Tested according to the method specified in GB/T9286-1998 "Scratch test of paint and varnish film", meeting the requirements of Class I.
