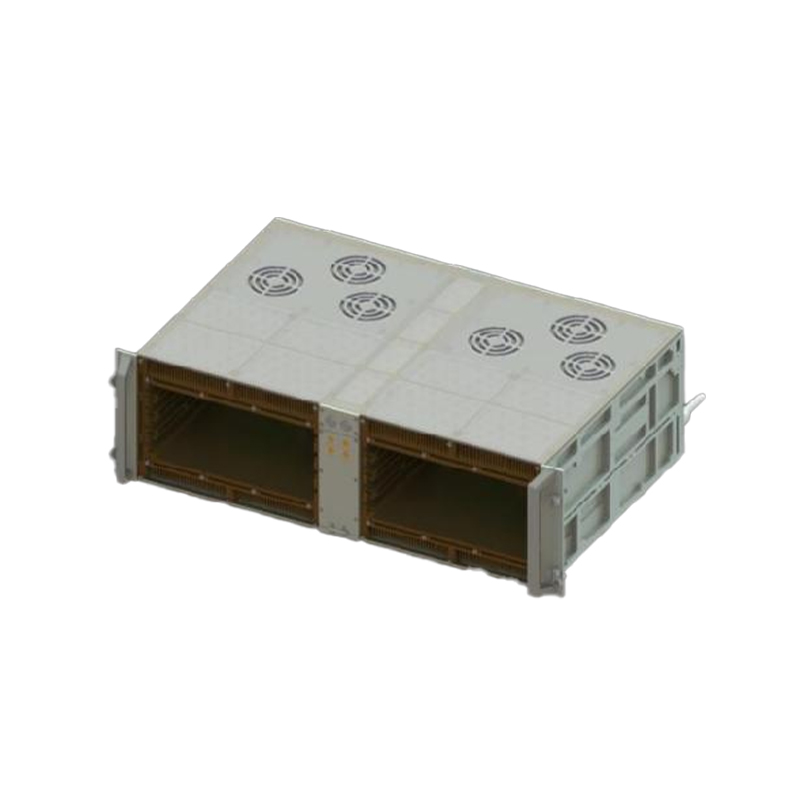

24 Inch Reinforced Air-Cooled Chassis
The air-cooled chassis is sturdy, highly stable, and highly reliable. It can be used in ground stations, vehicles and other electronic equipment. The front panel is equipped with power input, DC output and fan status indicator lights to monitor the system status in real time. The chassis adopts a front card design, the panel adopts a shielding design, and the hinge is opened for easy use by users.
Chassis composition:
The chassis is made of upper cold plate, lower cold plate, and side panels welded by vacuum brazing. The air duct cover, front and rear panels, ears, reinforcement frame, front inner panel and other components are locked with screws.
Material and surface treatment:
The chassis body is made of 6 series aluminum alloy, and the surface treatment is color conductive oxidation and then sprayed/painted. The color can be customized according to customer requirements.
Supply range:
Fans, hinges, guide pins, handles, rubber strips, light guides, mounting blocks, wire racks, rubber pads, etc.
Customization:
The front and rear panels, handles, mounting blocks, ears, fans, and air-cooled module power supplies of the chassis are optional and customized.
Product performance:
1. Working temperature: -10℃～50℃, storage temperature: -41℃～60℃.
2. Meet the environmental conditions of vehicle transportation, high and low temperature, humidity, etc.
39ksrym5eu5abZf1wW8XFgpwKCMv86pYQT
4. Impact half-sine wave 15g, 11ms, 3 times in each of the three axes and 6 directions, a total of 18 times. According to the requirements of GB/T24001-2016.
5. Mold meets the GB/T24001-2016 standard, the grade is level 1, and the test cycle is 28 days.
6. Salt spray environment test GB/T24001-2016 requirements and methods are carried out to meet 96h.

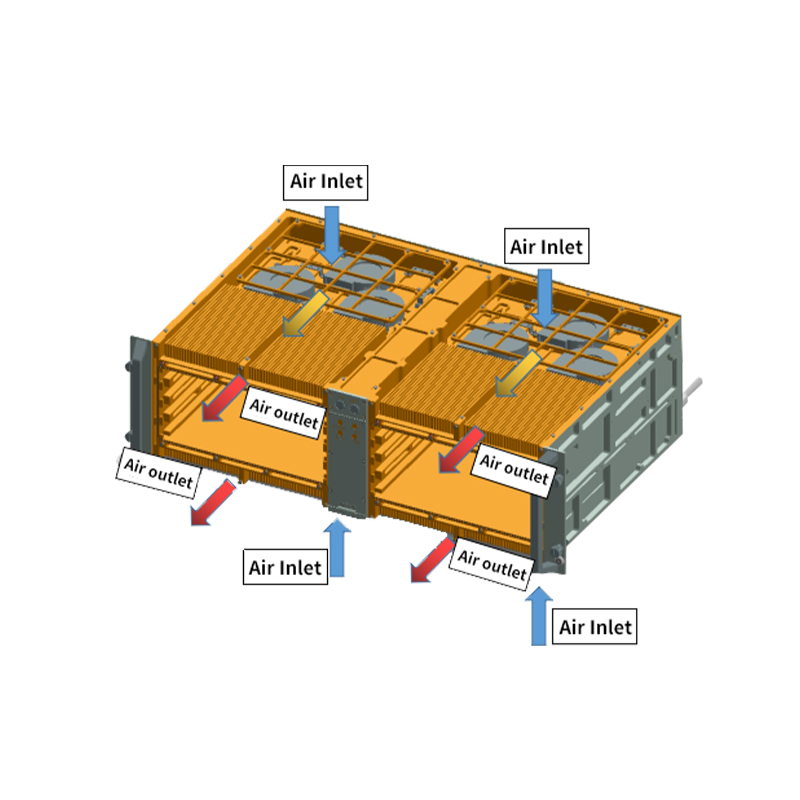

7. Basic parameters: The upper and lower covers of the chassis have fan racks, L-shaped ventilation on the upper and lower sides, 12 12V high-power DC fans, and support stepless speed change.
