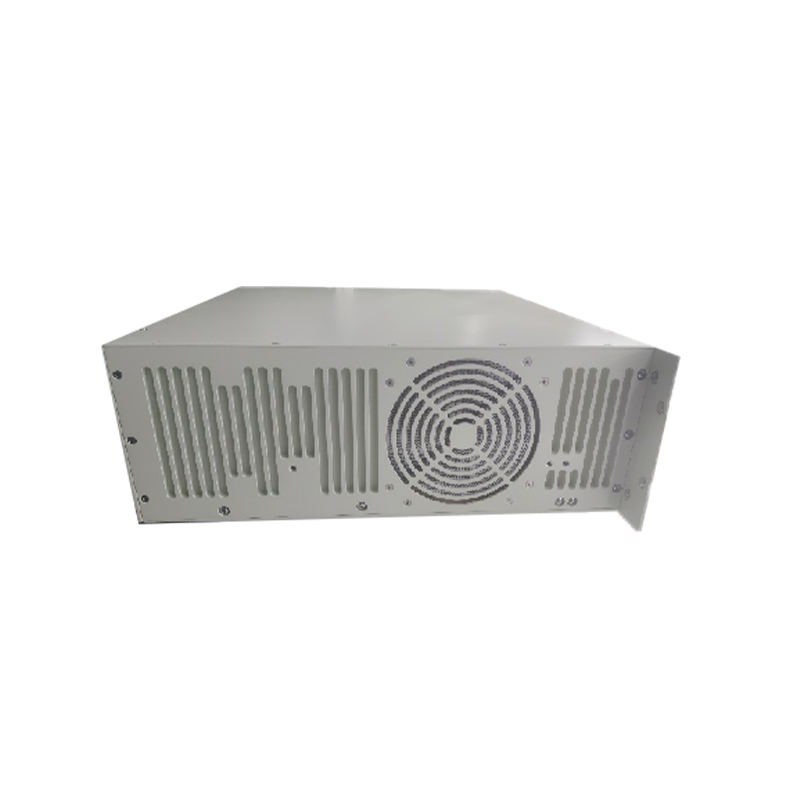

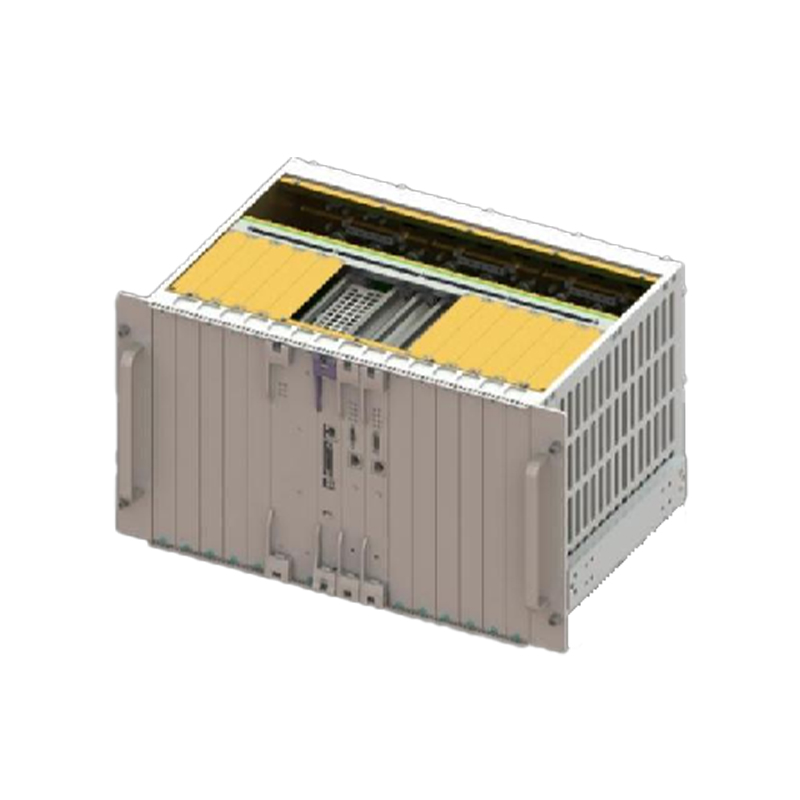

19 Inch Reinforced Air-Cooled Chassis

The air-cooled chassis is strong, stable and reliable. It can be used in ground stations, vehicles and other electronic equipment. The front panel is equipped with power input, DC output and fan status indicator lights to monitor the system status in real time.

Chassis composition:

The chassis consists of left and right side panels, reinforcement frame, wind shield, upper and lower cover plates, front and rear panels and other components locked with screws.

Material and surface treatment:

The chassis body is made of aluminum alloy, and the surface treatment is color conductive oxidation and then sprayed/painted. The color can be customized according to customer requirements.

Supply range:

Handles, guide rails, rubber pads, beams, grounding columns, hinges, wire binding racks, adapter plates, etc.

Customization:

The handles, guide rails, hinges, adapter plates, wire binding racks, front and rear panels, fans, air-cooled module power supplies and surface treatments of this product can be customized and optional.

The chassis is sturdy, highly stable and reliable, and can be used in ground stations, vehicle-mounted and other electronic equipment. The front panel is equipped with power input, DC output and fan status indicators for real-time monitoring

Consult

Features Technical Indicators Overall Dimension

Product performance:
Working temperature: -40℃～85℃, storage temperature: -50℃～100℃.
Meet vehicle transportation, high and low temperature, humidity and other environmental conditions.
Vibration meets the vibration test of GB/T24001-2016 equipment environmental test method.
Impact half-sine wave 15g, 11ms, 3 times in each of the three axes and 6 directions, a total of 18 times. According to GB/T24001-2016 requirements.
Mold meets GB/T24001-2016 standards, level 1, and the test period is 28 days.
Salt spray environmental test is carried out according to GB/T24001-2016 requirements and methods for 96 hours.

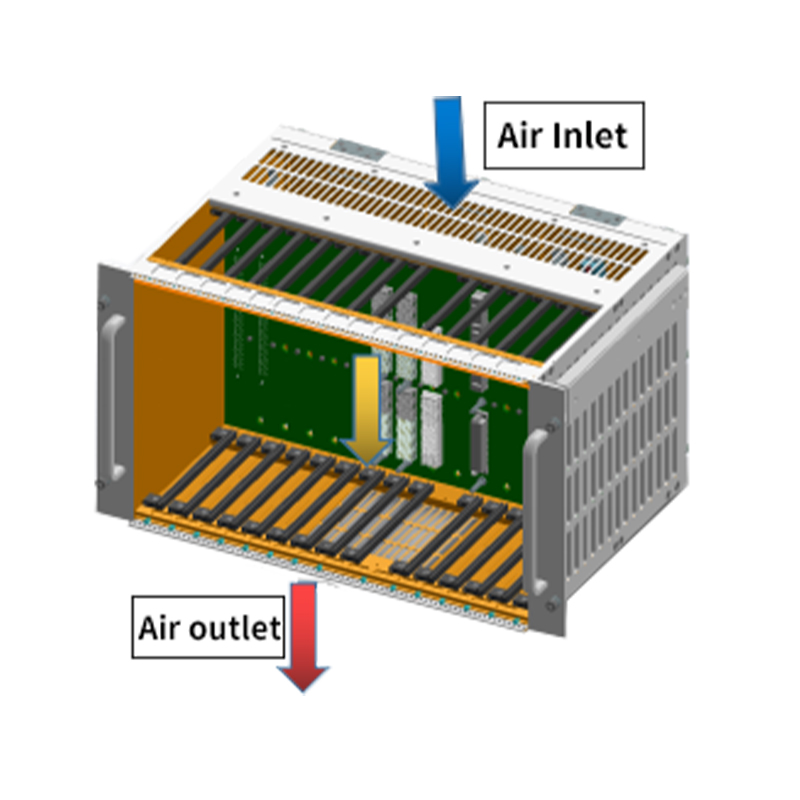

Basic parameters: There is a fan rack on the inside of the lower cover of the chassis, with ventilation up and down, three 12V high-power DC fans, support stepless speed change, and can support the heat dissipation of a single board with a heat consumption of 120W.
