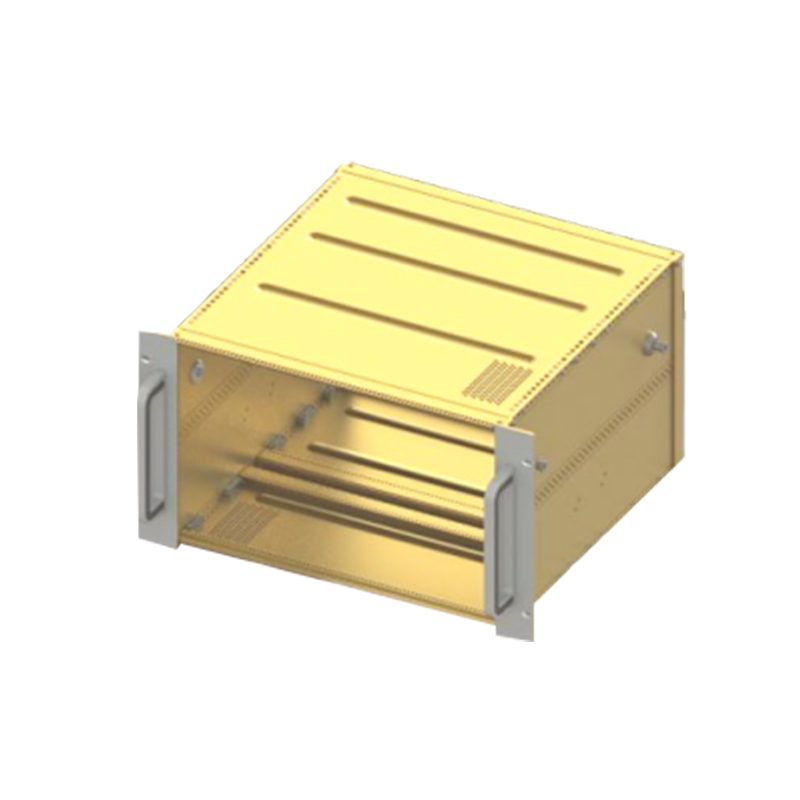

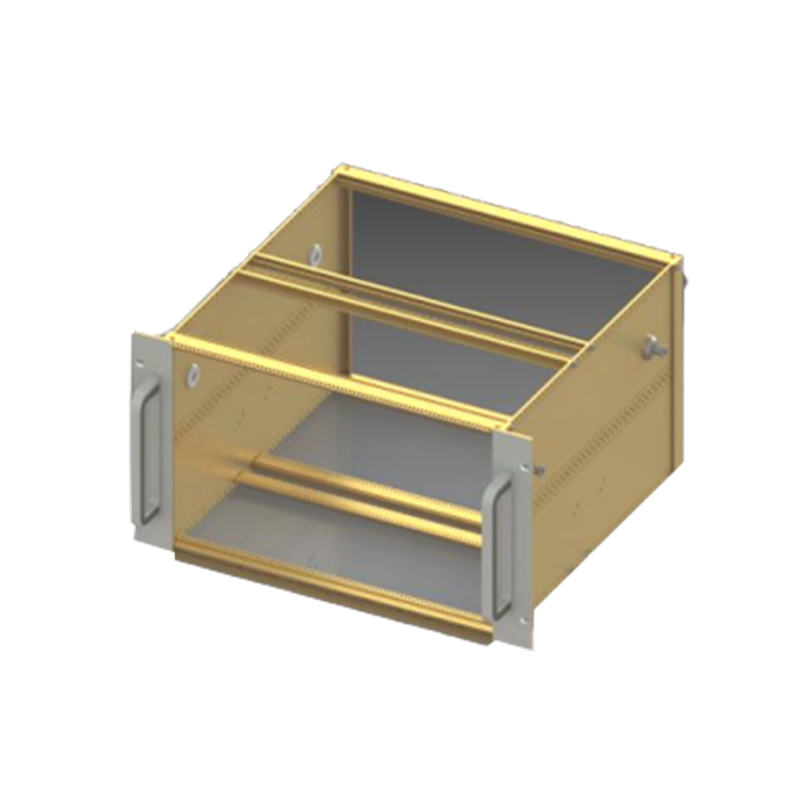

Profile Chassis

The chassis (plug box) is an important part of electronic equipment. It is generally composed of beams, upper and lower covers, front and rear panels, and left and right side panels. The usable space is measured in slots. A slot is usually composed of several horizontal HPs, or given by the designer.
Internal plug-ins are mainly divided into board plug-ins and box plug-ins. A board plug-in consists of a front panel and a circuit board with a connector. A box plug-in is generally a box that installs a large number of components or several circuit boards.

Consult

Features Technical Indicators Overall Dimension

name	Ginseng number	model
	Ginseng number	3U×465CP-1 (A/B)	4U×465CP-1（A/B）	5U×465CP-1（A/B）	6U×465CP-1（A/B）	7U×465CP-1
	W	465	465	465	465	465
	H	3U(132)	4U(176)	5U(220.7)	6U(265.15)	7U(309.8)
	T	57.15	101.6	146.05	190.5	234.95
	N	76.5	76.5	76.5	76.5	120.45
	handle	RX6.465.01074	RX6.465.01074	RX6.465.01093	RX6.465.01073	RX6.465.01073
