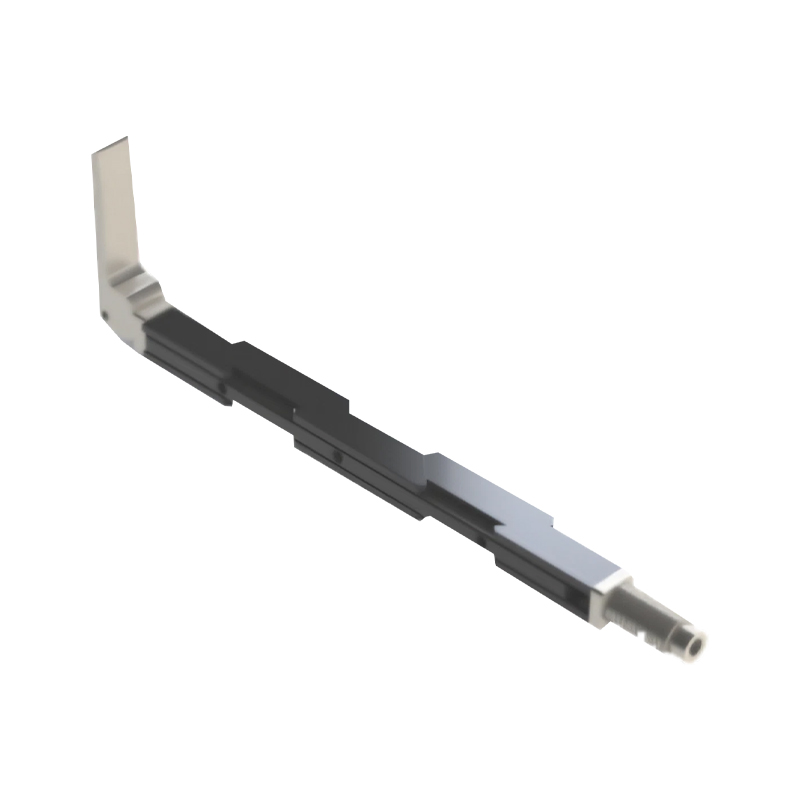

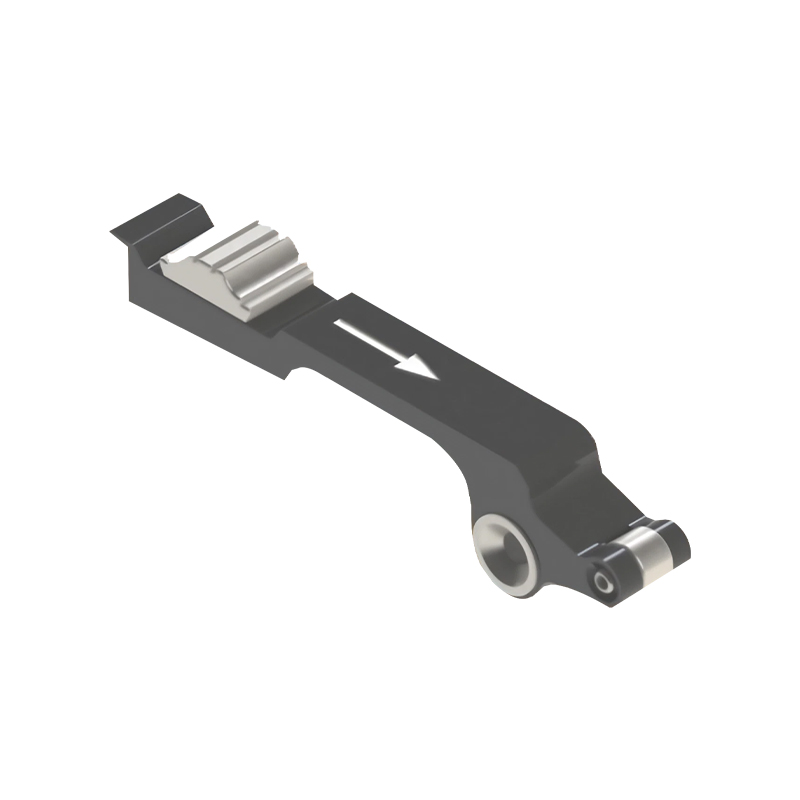

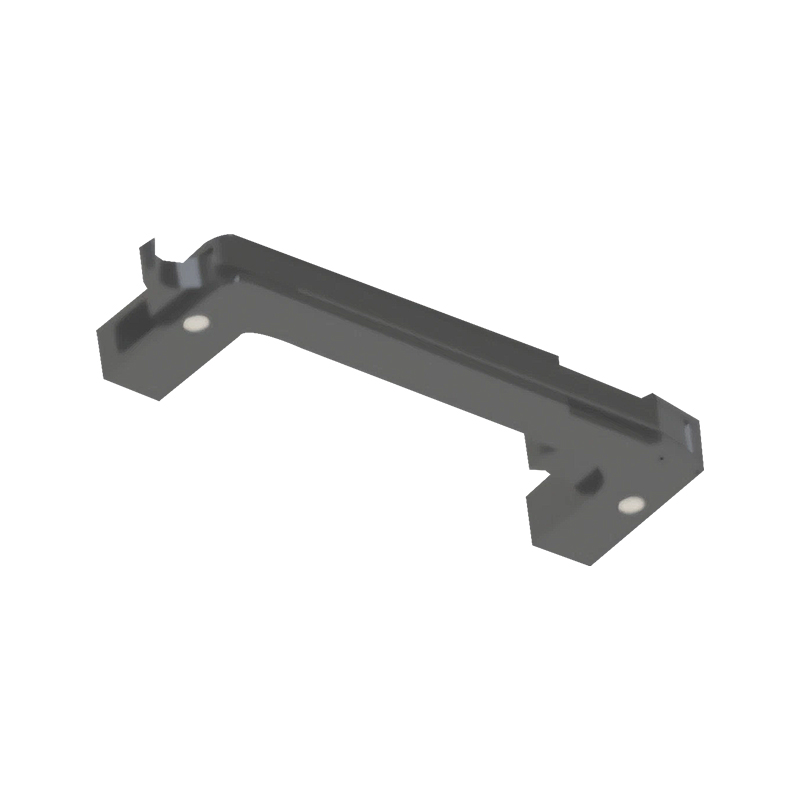

Locking Mechanism: Locking Strip, Puller, Tightening Handle

Locking Mechanism: Locking Strip, Puller, Tightening Handle

This product is widely used in the rapid locking and disassembly of various boards and modules, and has the characteristics of high reliability, thermal conductivity, shock resistance, vibration resistance, etc.

Consult

Features Technical Indicators Overall Dimension

RX-XS5-6E Series Locking Strip Dimensions Parameters
Serial number	Product Model	Product length L/mm	Number of mounting holes/n	Installation hole diameter M/mm	Installation hole size/mm				Weight approx./g	Remark
					X1	X2	X3	X4
					X1+X2
1	RX-XS5-120-B-6E	120	3	M2.5	28.5	24	28	—	18	Color anodizing
2	RX-XS5-135-B-6E	135	4	M2	55.07		22.86	—	20	Color anodizing
3	RX-XS5-160-B-6E	160	4	M2	54.87		48.26	—	24	Color anodizing
4	RX-XS5-185-B-6E	185	4	M2	54.67		73.66	—	27	Color anodizing
5	RX-XS5-210-B-6E	210	4	M2	54.47		99.06	—	32	Color anodizing
6	RX-XS5-235-B-6E	235	4	M2	54.27		124.46	—	36	Color anodizing
