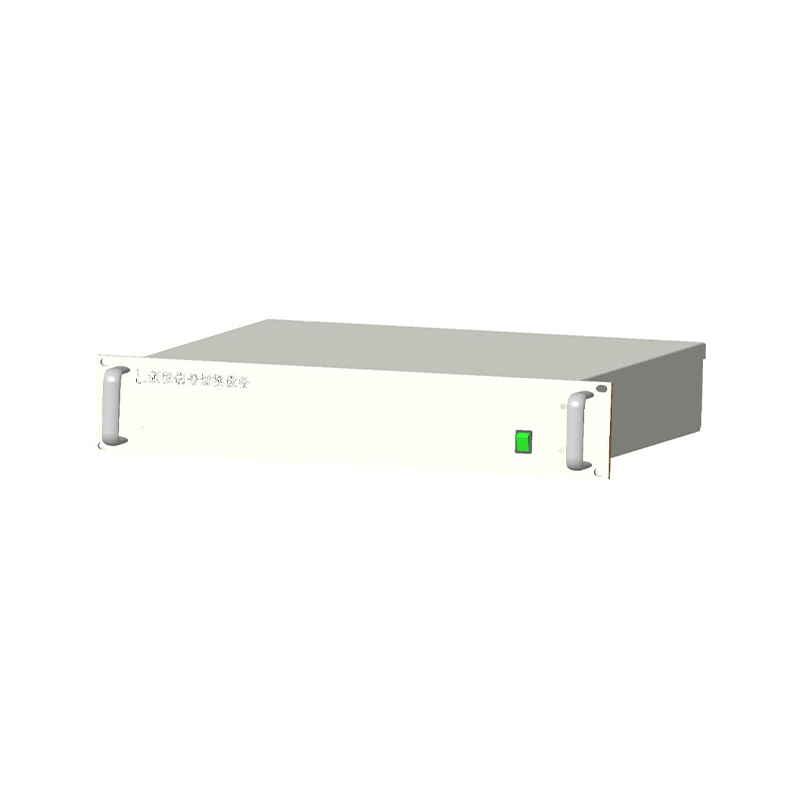

L-Band Signal Switching Device
L-Band Signal Switching Device
It has the function of power distribution and switching of digital intermediate frequency signal and digital analog signal.
It has the function of remote operation and local operation.

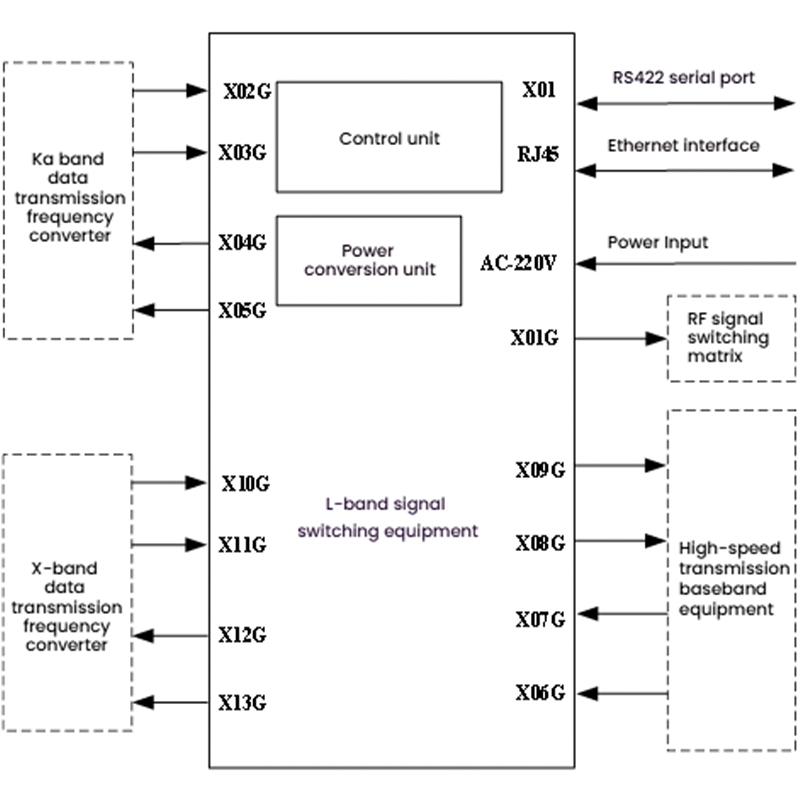

It has the function of highlighting the signal connection between interfaces.
Working frequency range: 1200MHz~1800MHz.Interface type: SMA-K.Input/output standing wave ratio: ≤1.35.Channel isolation: better than 95dB.Working voltage: 220×(1±10%)V, 50×(1±5%)Hz.Structural dimensions (L×W×H): (380±0.2)×(482.6±0.2)×(88±0.2)mm
