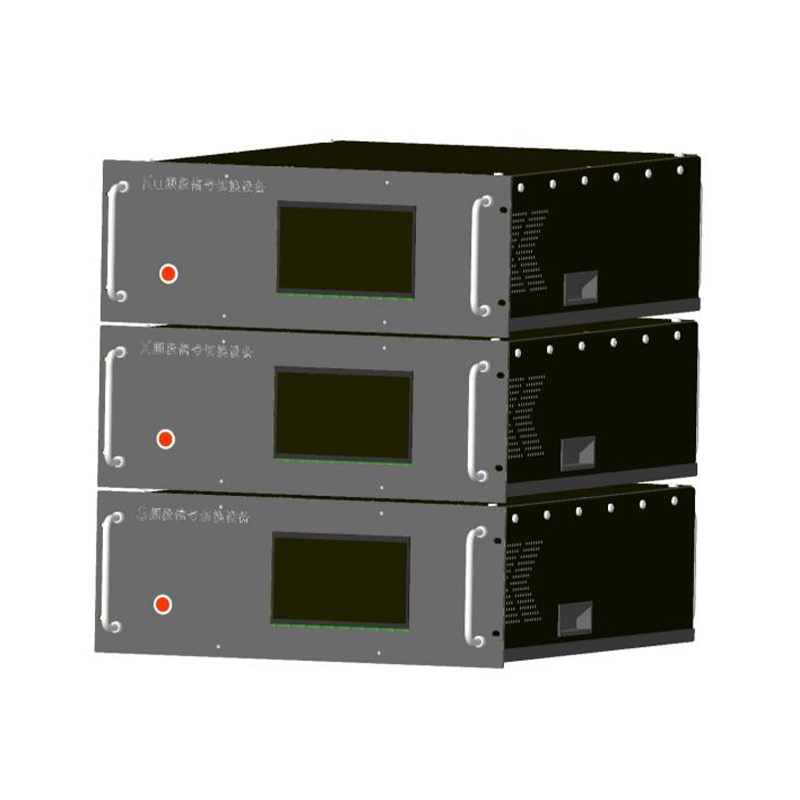

S/x/ka Rf Signal Switching Equipment
S/x/ka Rf Signal Switching Equipment

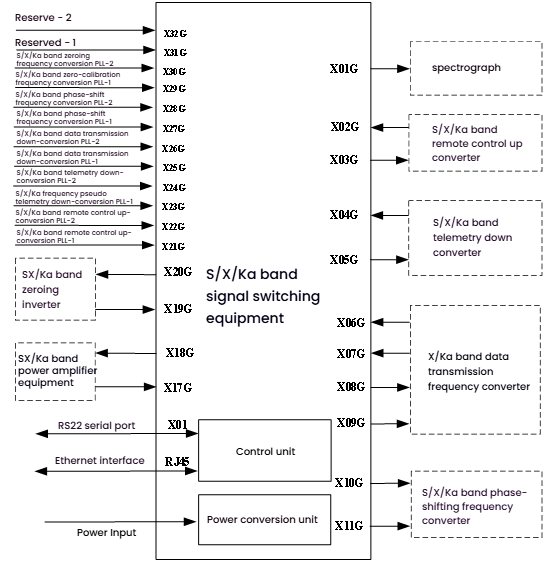

It has multiple RF monitoring signal input interfaces, and can switch RF signals according to control instructions.
It has the power distribution and switching functions of remote control signals/telemetry analog signals/digital transmission analog signals.
It has the power distribution and switching functions of downlink telemetry signals/digital transmission signals.
It has the functions of remote operation and local LCD screen operation.
It has the function of displaying the signal connection relationship between interfaces.
Working frequency range: covers S/X/Ka bands respectively.
Interface type: SMA-K@S/X band, 2.92@Ka band.
Input/output standing wave ratio: ≤1.35.
Channel isolation: better than 95dB.
Working voltage: 220×(1±10%)V, 50×(1±5%)Hz.
Structural dimensions (L×W×H): (380±0.2)×(482.6±0.2)×(177±0.2)mm
