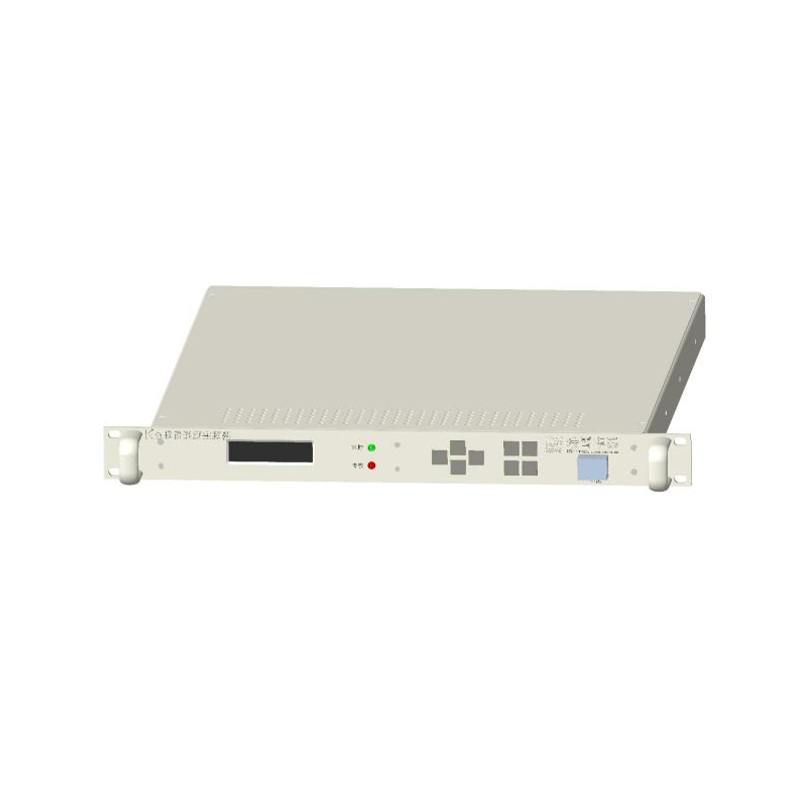

X-Band Down Converter (Data Transmission)
X-Band Down Converter (Data Transmission)
Built-in 10MHz reference signal, with automatic switching of external 10MHz reference function;
Local key control or remote control;
Serial communication and Ethernet communication functions;
Both up and down frequency conversion adopts double frequency conversion, spectrum is not inverted, and frequency selection performance is high;
Standard 19 inches, can be mounted on the rack.
1. RF input/output frequency range: 7500MHz~9000MHz, frequency step 10kHz.2. IF output/input and output frequency range: 1200MHz±200MHz.3. Flatness: ≤±1.5dB@±200MHz.4. Linear gain control range: (down conversion) -20dB~+40dB, (up conversion) -10dB~+20dB step 0.5dB.5. Third-order intermodulation (IM3): RF output ≤-50dBc, IF output ≤-45dBc.6. Delay fluctuation within instantaneous bandwidth: ≤±3.5ns.7. RF output signal noise floor: near-end noise floor ≤-140dBm/Hz.8. Noise figure: ≤6dB.9. Transceiver channel isolation: better than 80dB.10. Input/output standing wave ratio: ≤1.5.11. Phase noise: ≤-68dBc/Hz@100Hz, ≤-78dBc/Hz@1kHz, ≤-83dBc/Hz@10kHz, ≤-90dBc/Hz@100kHz, ≤-102dBc/Hz@1MHz.12. Second harmonic: better than -50dBc.13. Image suppression ≥60dBc.14. Input withstand power: better than 20dBm.15. Spectrum is not inverted.16. Input withstand power: better than 20dBm.17. Working voltage: 220×(1±10%)V, 50×(1±5%)Hz.18. Structural dimensions (L×W×H): (380±0.2)×(482.6±0.2)×(44±0.2)mm
