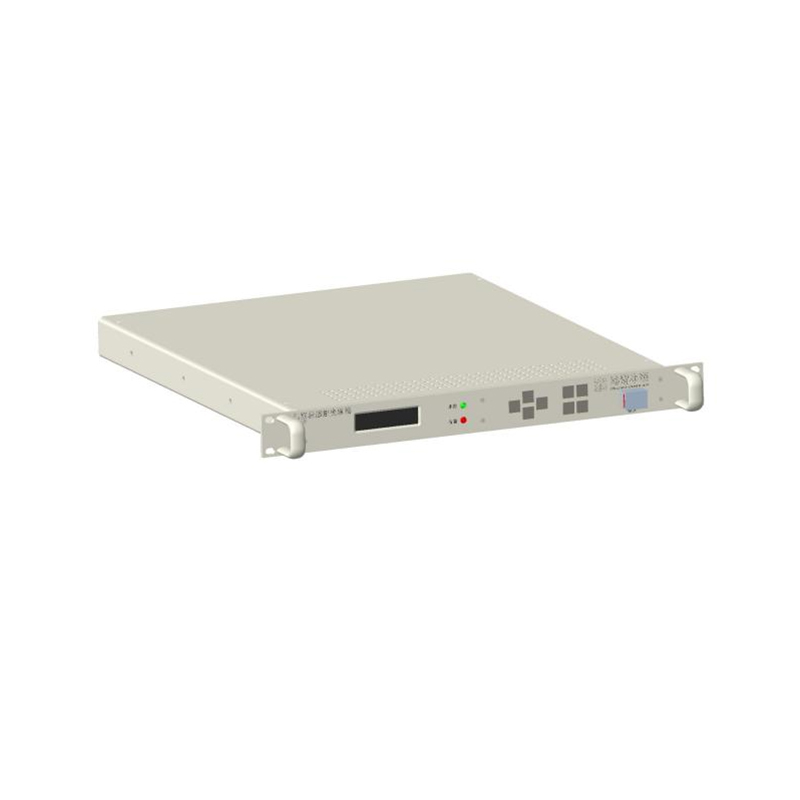

S-Band Up Converter (Remote Control)
S-Band Up Converter (Remote Control)

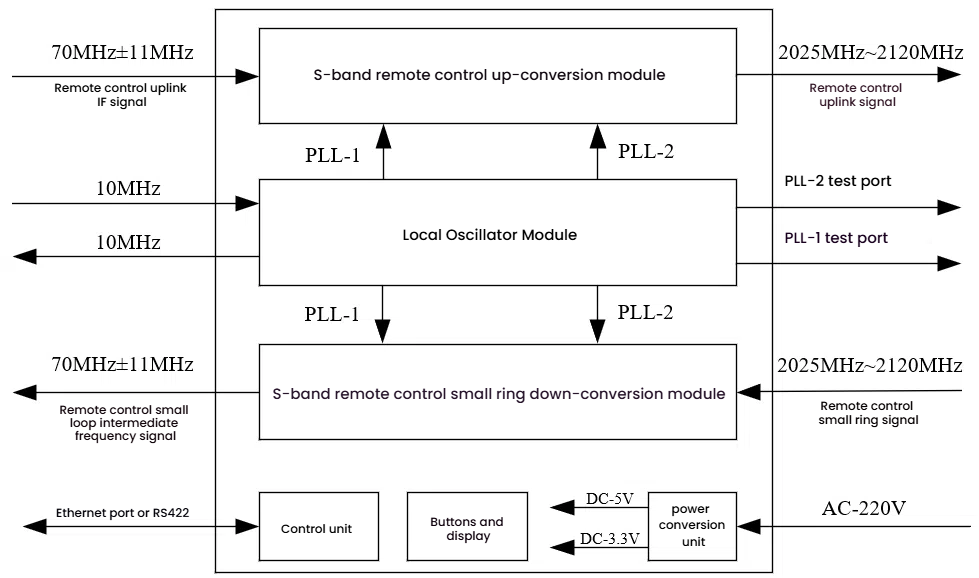

Built-in 10MHz reference signal, with automatic switching of external 10MHz reference function.
With local button control or remote control.
With serial communication and Ethernet communication functions.
Both up and down frequency conversion adopts double frequency conversion, the spectrum is not inverted, and the frequency selection performance is high.
Contains internal remote control down-conversion channel, which can be used for remote control small ring detection
Standard 19 inches, can be mounted on the rack.
1. RF input/output frequency range: 2025MHz~2120MHz, frequency step 1kHz.2. IF output/input and output frequency range: 70MHz±11MHz.3. Flatness: ≤±0.5dB@±11MHz.4. Linear gain control range: -30dB~+30dB, step 0.5dB.5. Gain stability: ±0.15dB/24h.6. Third-order intermodulation (IM3): RF output ≤-50dBc, IF output ≤-35dBc.7. Delay fluctuation within instantaneous bandwidth (±11MHz): ≤±2.5ns, 24h absolute delay change ≤5ns.8. RF output signal noise floor: near-end noise floor ≤-142dBm/Hz.9. Noise figure: ≤6dB.10. Transceiver channel isolation: better than 80dB.11. Input/output standing wave ratio: ≤1.5.12. Local oscillator phase noise: ≤-73dBc/Hz@100Hz. ≤-80dBc/Hz@1kHz. ≤- 93dBc/Hz@10kHz. ≤- 102dBc/Hz@100kHz. ≤-110dBc/Hz@1MHz.13. Second harmonic: better than -35dBc.14. Image frequency suppression ≥60dBc.15. Spectrum is not inverted.16. Input withstand power: better than 20dBm.17. Working voltage: 220×(1±10%)V, 50×(1±5%)Hz.18. Structural dimensions (L×W×H): (380±0.2)×(482.6±0.2)×(44±0.2)mm
