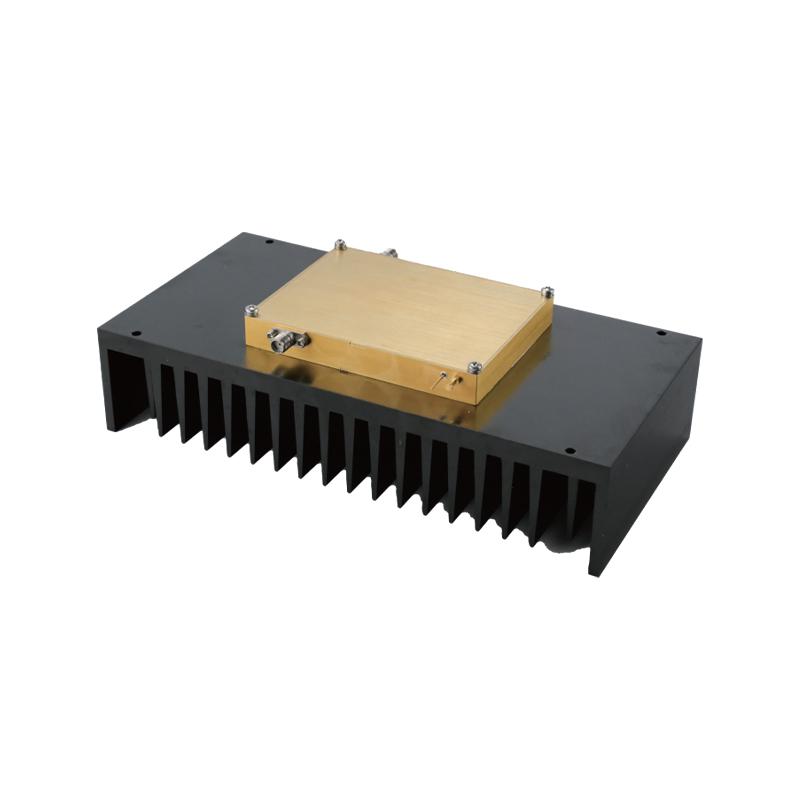

Ka Band Power Amplifier Equipment

Consult

Features Technical Indicators Overall Dimension

1. Operating frequency range: 27GHz~31GHz.
2. Output power (CW): 10W/20W/40W/200W (customizable).
3. Small signal gain: 65dB (customizable).
4. Second harmonic suppression: better than 50dBc.
5. Third-order intermodulation (IM3): ≤-30dBc (backoff 7dB).
6. Clutter suppression: better than 65dBc.
7. Gain control range: 30dB, step 0.5dB.
8. Group delay in any instantaneous band (±11MHz): ≤±0.5ns, 24h absolute delay change ≤5ns.
9. Flatness in any instantaneous band (±11MHz): ≤±0.25dB.
10. Gain stability: ±0.3dB/24h.
11. Phase noise: deterioration is no more than 1dB.
12. AM/PM Conversion coefficient: ≤2/dB (at P-1).
13. Input/output interface: N/BJ320 (WR28)
14. Input/output standing wave: ≤1.5.
15. Operating temperature: -40℃~+60℃.
16. Storage temperature: -55℃~+70℃.
17. Operating voltage: 220×(1±10%)V, 50×(1±5%)Hz
