It has the ability to receive, demodulate, decode, transmit and process S-band radio frequency signals.
It has the ability to decrypt, frame and save telemetry information in an unattended state.

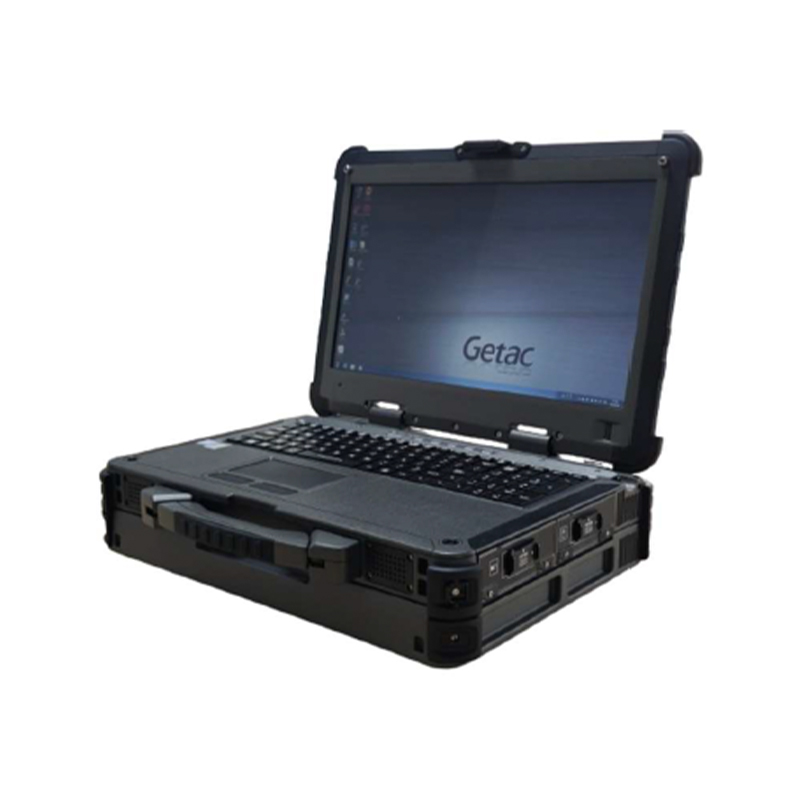

It is equipped with an independent display system to complete the real-time processing and display of video information.
Internal time system accuracy: 0.1ms/0.001ms, internal clock stability 1x10-7/d.
Main performance indicators:
Telemetry system: PCM-FM;
Receiving frequency band: xx00MHz~xx00MHz, frequency step 1 MHZ;
Receiver dynamic range: 80dB; Receiving sensitivity: -126dBW@5Mbps;
Code type: NRZ-L, RNRZ-L (15 bits);
IF bandwidth: 100KHz~18MHz Optional;
Word length: 4~16 bits; Frame length: 4~1024 words/frame;
Subframe length: 2~256 subframes/subframe; Subframe synchronization mode: inverse code;
When the input signal is 15dBm, the device is not damaged;
Bit error rate: ≤1x10-4 (Eb/N0-12dB); Data format: Execute according to the standard telemetry data format;
Capture range: ±250KHz; Bit rate: 100Kbps~10Mbps;
Dimensions: <160mmx120mmx40mm; Equipment weight: <680g;
Power supply: Use an external power adapter to power the entire machine: The adapter DC output is 12V+2V, ripple <1%, current output: -6A;

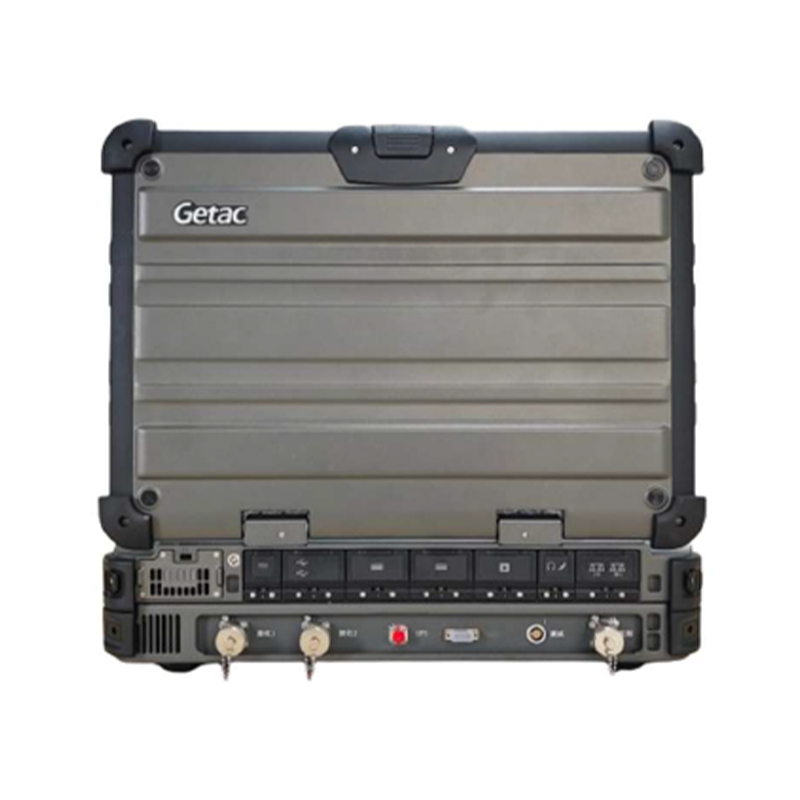

External interface: 1 Gigabit Ethernet RJ45, 1 12V power 3-pin aviation plug, 1 SMA Type antenna socket:
Working temperature: -20℃~+55℃; Storage temperature: -40℃~+85℃
